Canna 200 LS

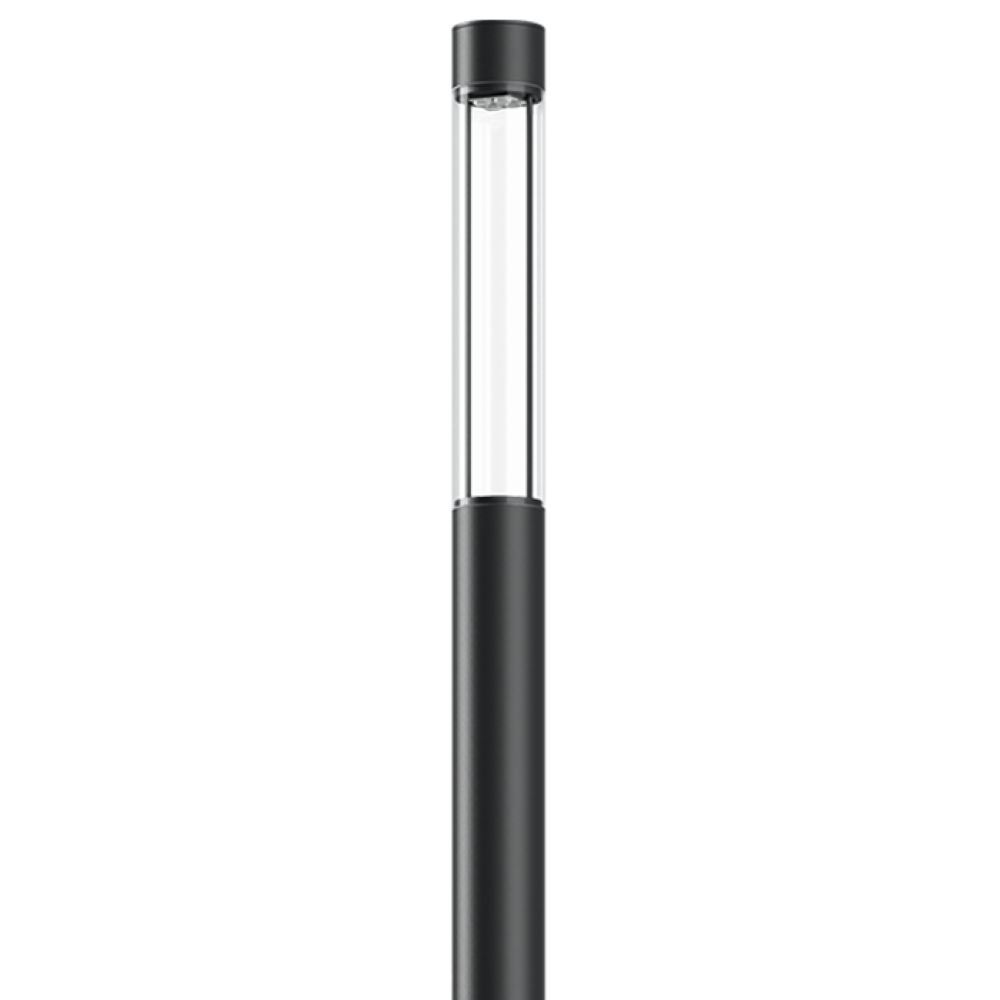

The Canna 200 LS is a light bollard with all-round light emission for outdoor lighting, with a housing in aluminium (Ø 200 mm), optionally in hot-dip galvanised steel, and luminaire glazing in clear PMMA. With BLK4 LED modules, the family covers a power range of 19-37 W and delivers 1'760-3'415 lm depending on module and light distribution. Five light distributions, the light colours 2'700/3'000 K (optionally 1'800/2'200/4'000 K) and three standard housing colours make the luminaire flexibly configurable for light point heights of approx. 2.90-7.90 m.

Key facts:

• Slim light bollard with a 900 mm high, all-round light aperture
• Five selectable light distributions: symmetric wide, asymmetric wide (3 versions) as well as asymmetric deep-beam, some optionally with BLC or HSL glare-control optics
• PMMA lenses, satin-finished
• Constant-current driver with DALI, dimming circuit and AstroDim; optionally DALI-2, DC-capable
• Optional on the top: Zhaga socket, PIR sensor, esave controller
• Weather-resistant: housing IP65, LED module IP67
• For light point heights of approx. 2.90-7.90 m
• Optionally available: separate bollard base with ground section or flange plate

Scope of delivery:

• 1x Canna 200 LS light bollard (in the selected configuration)
• 1x LED module with electronic driver (pre-assembled)
• 1x mounting instructions

Note: Further versions available on request

ELECTRONICS

• Power: 19 - 37 W
• Control gear: constant-current driver for LED modules

LIGHTING TECHNOLOGY

• Luminaire type: Light bollard with all-round light emission
• Light source: LED module type BLK4-4/5/6/7/8S
• Light colour: 2'700 K / 3'000 K, optional 1'800 K / 2'200 K / 4'000 K
• Light colour adjustable: No
• Power adjustable: Yes
• Rated luminous flux: 1'760 - 3'415 lm (luminaire luminous flux per LED module)
• Light distribution: symmetric wide / asymmetric wide (3 versions) / asymmetric deep-beam, each optionally with BLC or HSL glare-control optics
• Cover: luminaire glazing in clear PMMA, PMMA lenses satin-finished

FUNCTIONALITY

• Dimmability: DALI, dimming circuit, AstroDim; optionally DALI-2, DC-capable
• Motion detector: Yes (optional, PIR sensor on the top)
• Interfaces: optional Zhaga socket Book 18, esave controller (telemanagement)
• Application area: Outdoor

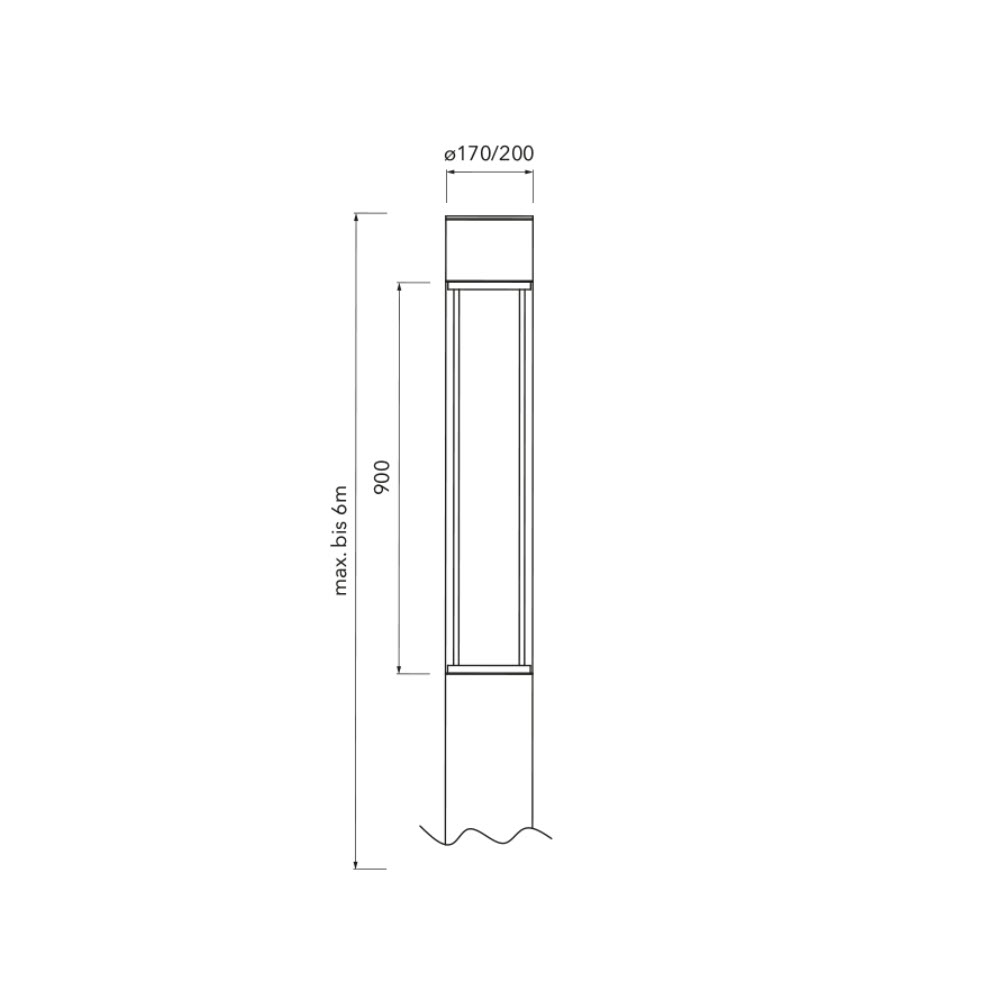

DIMENSIONS

• Diameter: Ø 200 mm
• Light emission: 900 mm high light aperture
• Height: bollard up to max. 6 m
• Light point height: approx. 2.90 - 7.90 m (with separate bollard base)

MATERIAL

• Housing colour: DB 703 / DB 702S / DB 701, further colours on request
• Housing material: aluminium Ø 200 mm, optionally hot-dip galvanised steel, coated surfaces
• Light emission material: PMMA
• Luminaire body: aluminium

FURTHER DATA

• Protection rating: housing IP65, LED module IP67
• Protection class: I and II
• Warranty: 5 years
• Certificates: CE, LED module and LED driver ENEC-certified
• Mounting: bollard base with ground section or flange plate
