Nava 120 PL

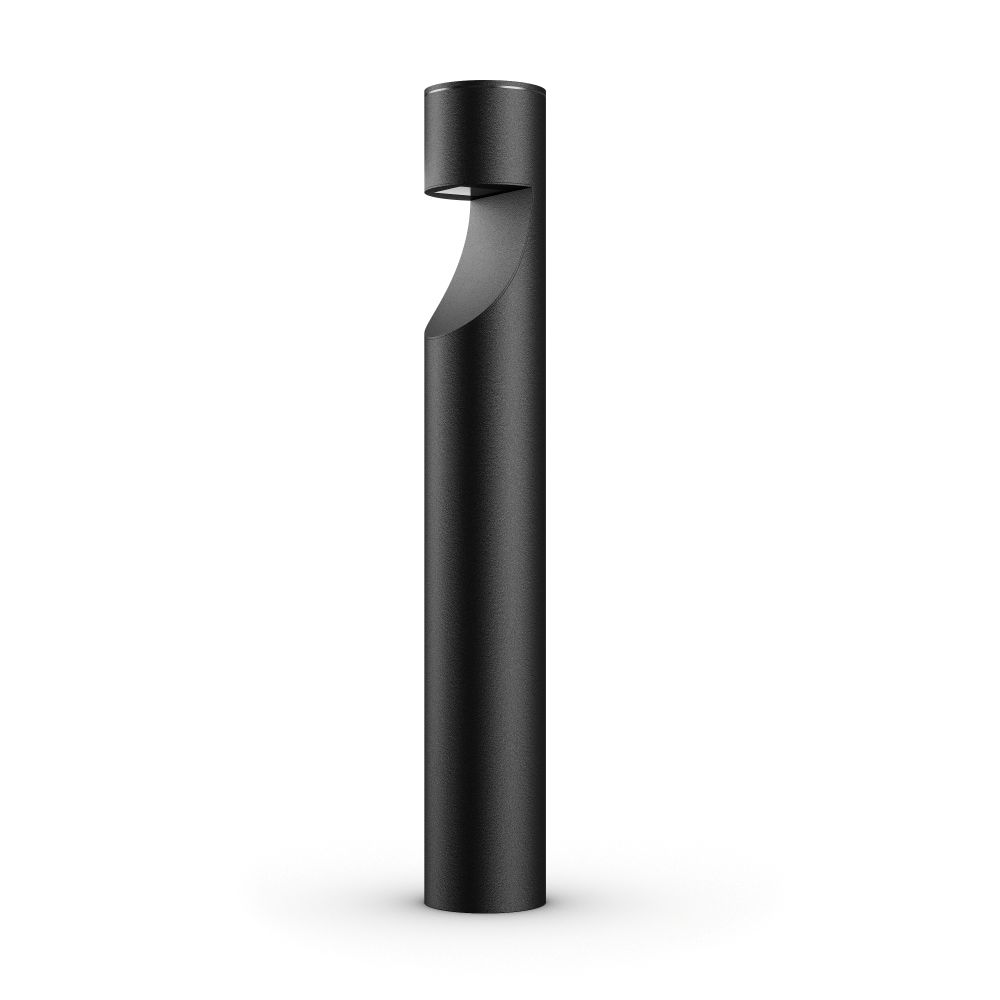

The Nava 120 PL is a round light bollard for outdoor lighting with an aluminium housing (ø120 mm) and a distinctive, laterally shaped recess from which the light emerges with a glare shield (BLC). It is equipped with an LED module of type BLK1-4/5/7/8 (C or S) and covers a power of 4.5-7.9 W and a luminous flux of max. 694-728 lm at 3'000 K. The light colours 2'200/2'700/3'000 K (optionally 1'800/4'000 K) and a light point height of 0.70 m make the luminaire versatile, for example for path and square lighting. In addition to the three standard housing colours, a version in burnished, waxed bronze is available as an option.

Key facts:

• Round light bollard in aluminium (ø120 mm) with laterally shaped light aperture
• LED module type BLK1-4/5/7/8, selectable in C or S version, with glare shield (BLC)
• Luminous flux max. 694 - 728 lm at 3'000 K
• Light colour 2'200/2'700/3'000 K, optionally 1'800/4'000 K
• Colour rendering CRI > 80 (at 2'700-4'000 K) or CRI > 70 (at 1'800/2'200 K)
• Constant-current driver with DALI, DC-compatible
• Light point height 0.70 m, total height 800 mm
• Available as an option: version in burnished, waxed bronze
• Weather-resistant: housing IP54, LED module IP67
• Mounting with mounting shoe (ground section or flange plate) incl. cable junction box

Scope of delivery:

• 1x Nava 120 PL light bollard
• 1x LED module with electronic driver, pre-assembled

Note: Further versions available on request

ELECTRONICS

• Power: 4.5 - 7.9 W
• Control gear: constant-current driver for LED modules, DALI dimmable, DC-compatible

LIGHTING TECHNOLOGY

• Luminaire type: Light bollard, lateral light emission from a shaped recess
• Light source: 1x LED module type BLK1-4/5/7/8, C or S, with glare shield (BLC)
• Light colour: 2'200 K / 2'700 K / 3'000 K, optionally 1'800 K / 4'000 K
• Light colour adjustable: No
• Power adjustable: Yes
• Rated luminous flux: max. 694 - 728 lm (at 3'000 K, depending on module)
• Colour rendering: CRI > 80 at 2'700 K / 3'000 K / 4'000 K, CRI > 70 at 1'800 K / 2'200 K
• Cover: luminaire cover in clear PMMA, PMMA lenses clear or satin-finished

FUNCTIONALITY

• Dimmability: DALI
• Application area: Outdoor

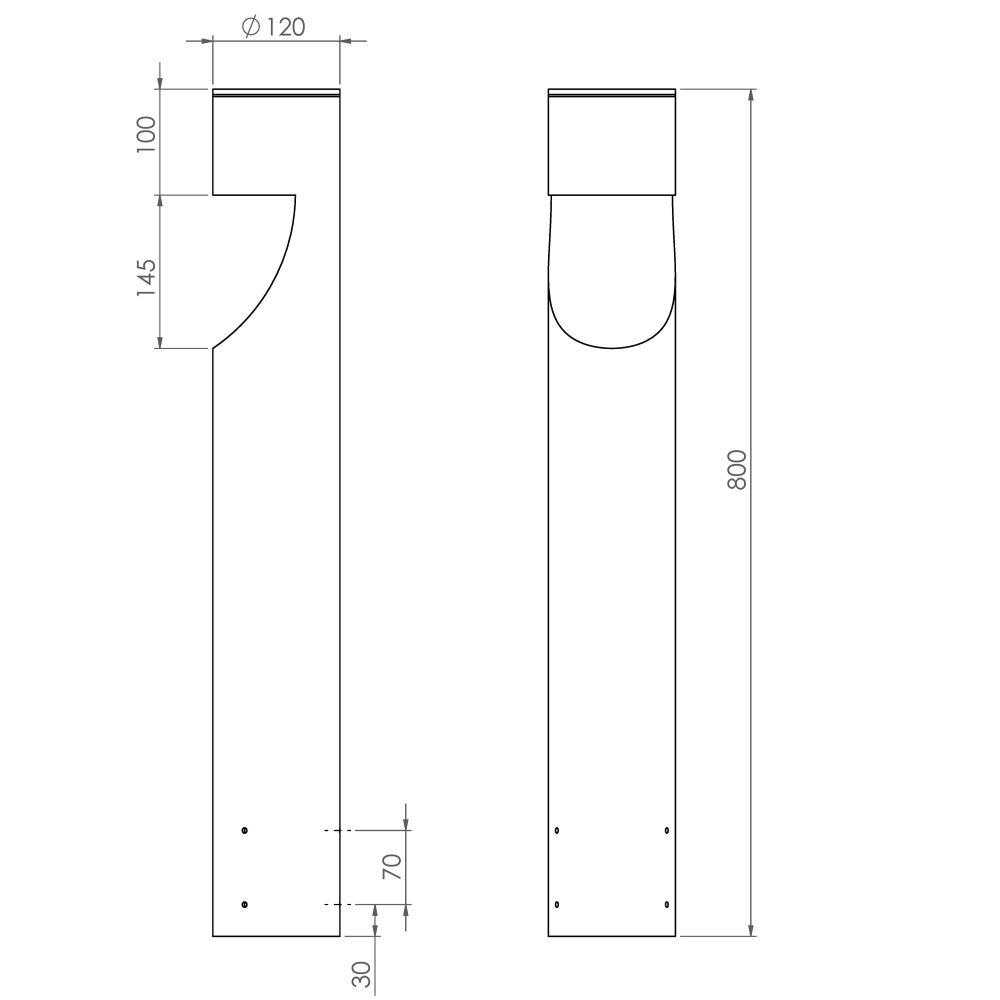

DIMENSIONS

• Diameter: ø120 mm
• Height: 800 mm
• Light point height: 0.70 m

MATERIAL

• Housing colour: DB703 (BL anthracite) / DB702 (BL grey) / DB701 (BL silver-grey), further colours on request; optionally burnished, waxed bronze
• Housing material: aluminium
• Light emission material: luminaire cover PMMA clear, PMMA lenses clear or satin-finished
• Luminaire body: aluminium

FURTHER DATA

• Protection rating: housing IP54, LED module IP67
• Protection class: I and II
• Warranty: 5 years
• Certificates: CE
• Mounting: mounting shoe with ground section or flange plate, incl. cable junction box
