Voss
Description

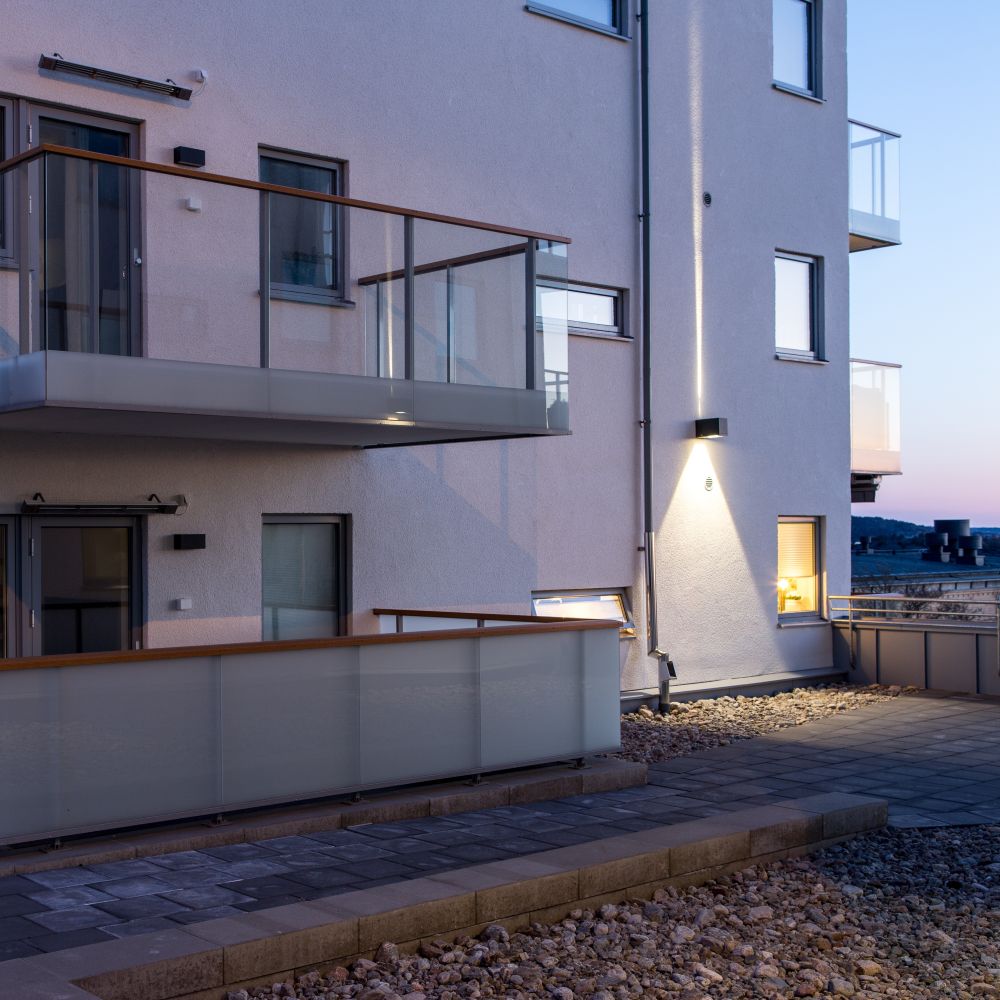

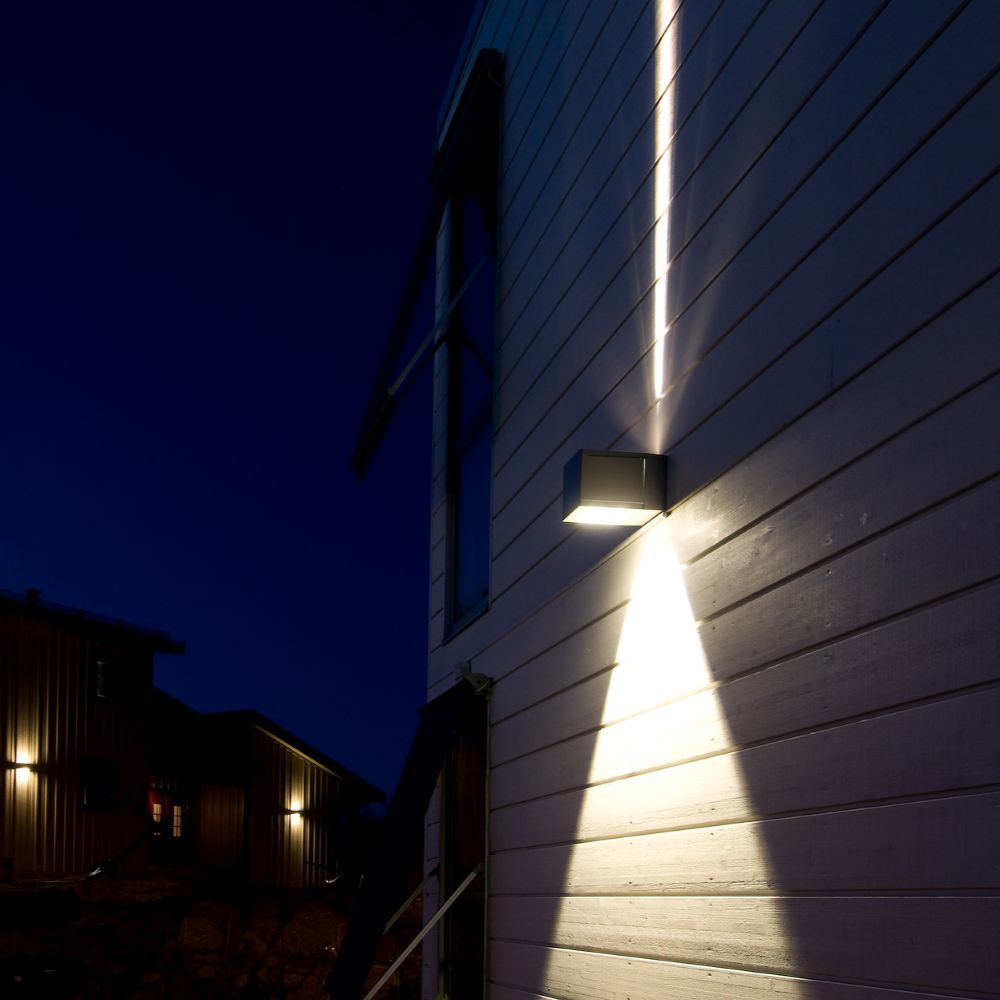

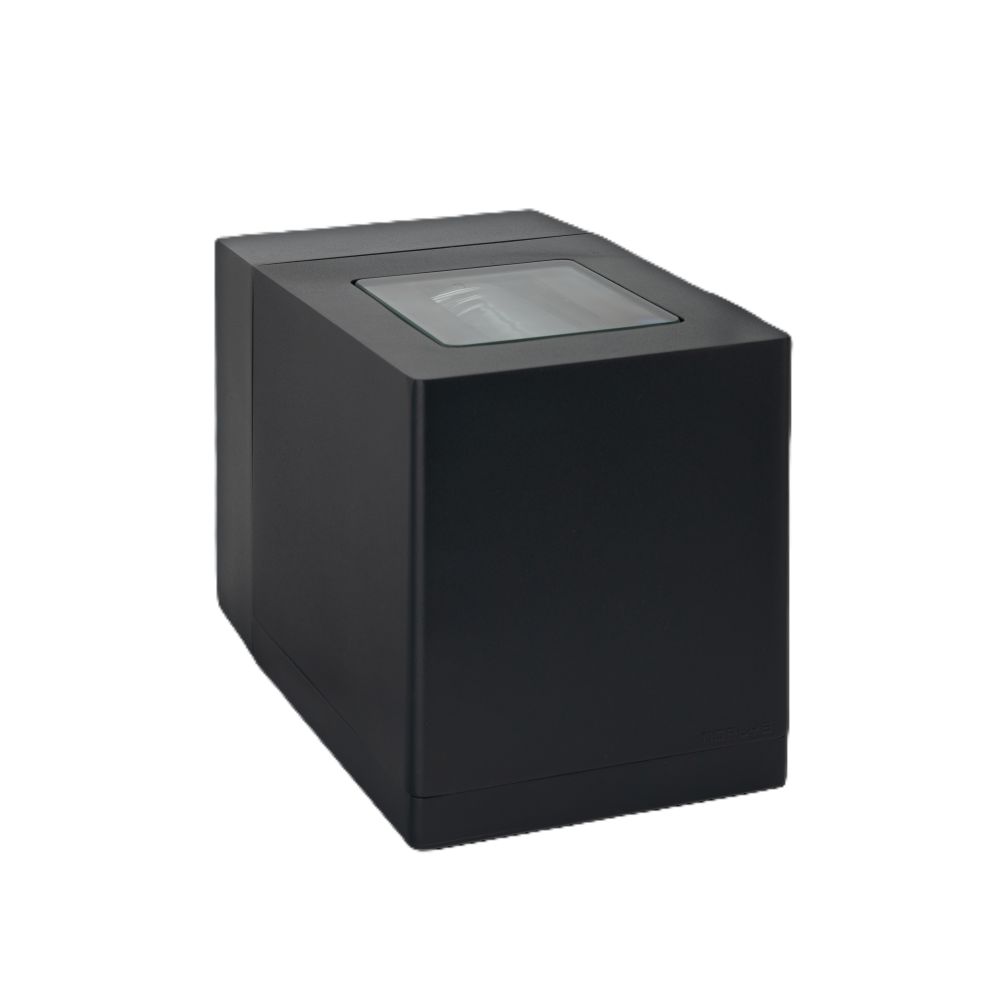

The Voss wall luminaires from Norlys offer a modern, compact design with clear light guidance for demanding outdoor areas. The robust aluminium housing and the glass cover provide a precise lighting effect that effectively accentuates façades, entrances and paths. Thanks to the GU10 light source and versions with one-sided or two-sided light emission, the Voss series adapts flexibly to different lighting requirements.
Key facts:
- Modern, compact design for outdoor use
- Robust aluminium housing with glass cover
- One-sided or two-sided light emission available
- GU10 light source for a flexible choice of lamps
- Ideal for façades, entrances and paths
- Weather-resistant and durably constructed
- Available in several colours and sizes
- Harmoniously combinable with modern architecture
We are happy to advise you on the exact specification; standard versions available from stock.
Technical data
ELECTRONICS
- Primary voltage: 220-240 V
- Maximum operating current: 50-150 mA
- Power: 3-7 W
- Maximum system power: 3-7 W
- Energy efficiency class: A–E
LIGHTING TECHNOLOGY
- Luminaire type: wall luminaire
- Lamp base: GU10
- Light colour: 2700 K, 3000 K, 4000 K
- Light colour adjustable: no
- Power adjustable: no
- Colour rendering: >80
- Maximum colour deviation: <3 SDCM
- Rated luminous flux: 250-600 lm
- Luminaire efficacy: 40-85 lm/W
- Light distribution: direct, decorative
- Light emission: one-sided, two-sided
- Beam angle: 30-120°
- Cover: clear glass
FUNCTIONALITY
- Dimmability: yes (depending on the lamp)
- Motion detector: no
- Presence detector: no
- Integrated light sensor: no
- Integrated emergency function: no
- Application area: outdoor
DIMENSIONS
- Length: 90-120 mm
- Width: 90-120 mm
- Height: 200-300 mm
- Material: aluminium, glass
- Housing colour: graphite, aluminium
- Light emission: one-sided, two-sided
- Luminaire body: powder-coated aluminium
FURTHER DATA
- Protection rating: IP44
- Protection class: I–II
- Impact resistance: IK06
- Warranty: 5 years
- Operating temperature: -20–+45 °C
- Certificates: CE
- Rating: –
- Mounting: wall mounting with screw fixing
- Lamp/light source replaceable: yes
- Control gear replaceable: yes
The technical data is not exhaustive; if you have any questions, please feel free to contact us at any time.
