Dufour

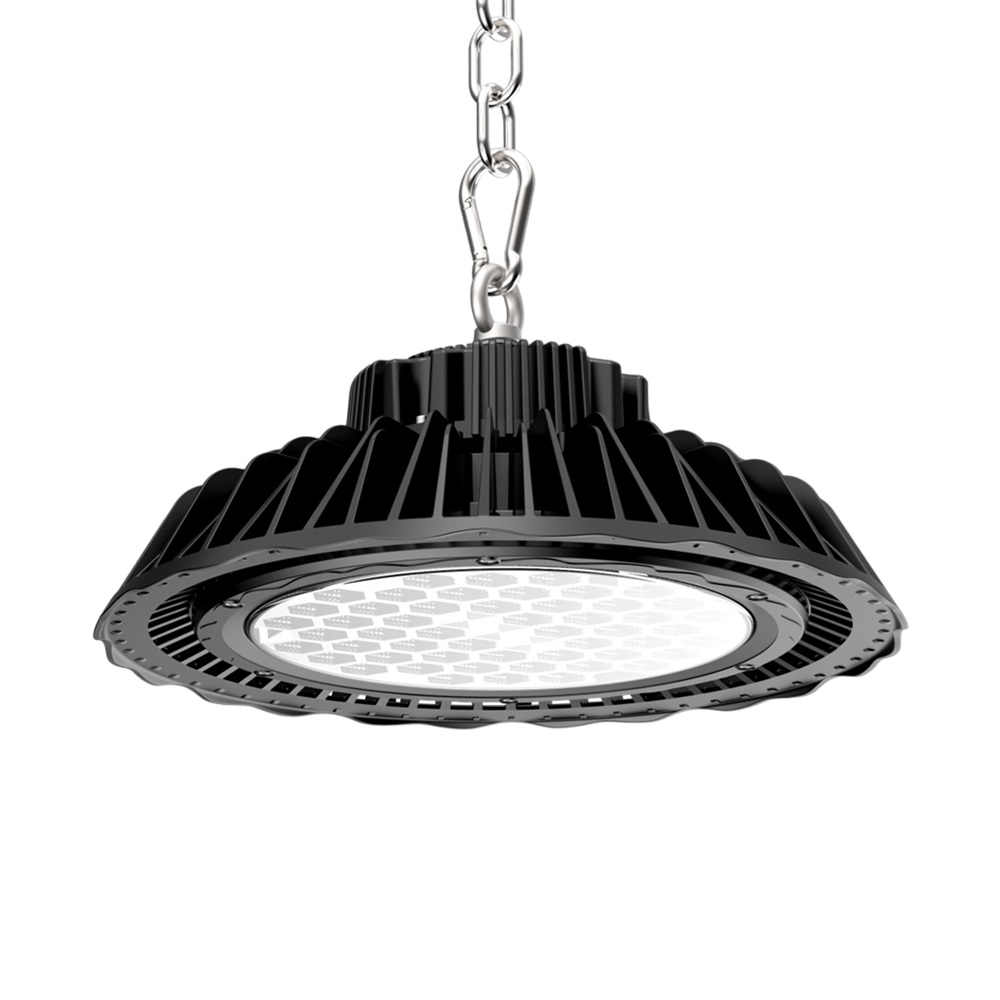

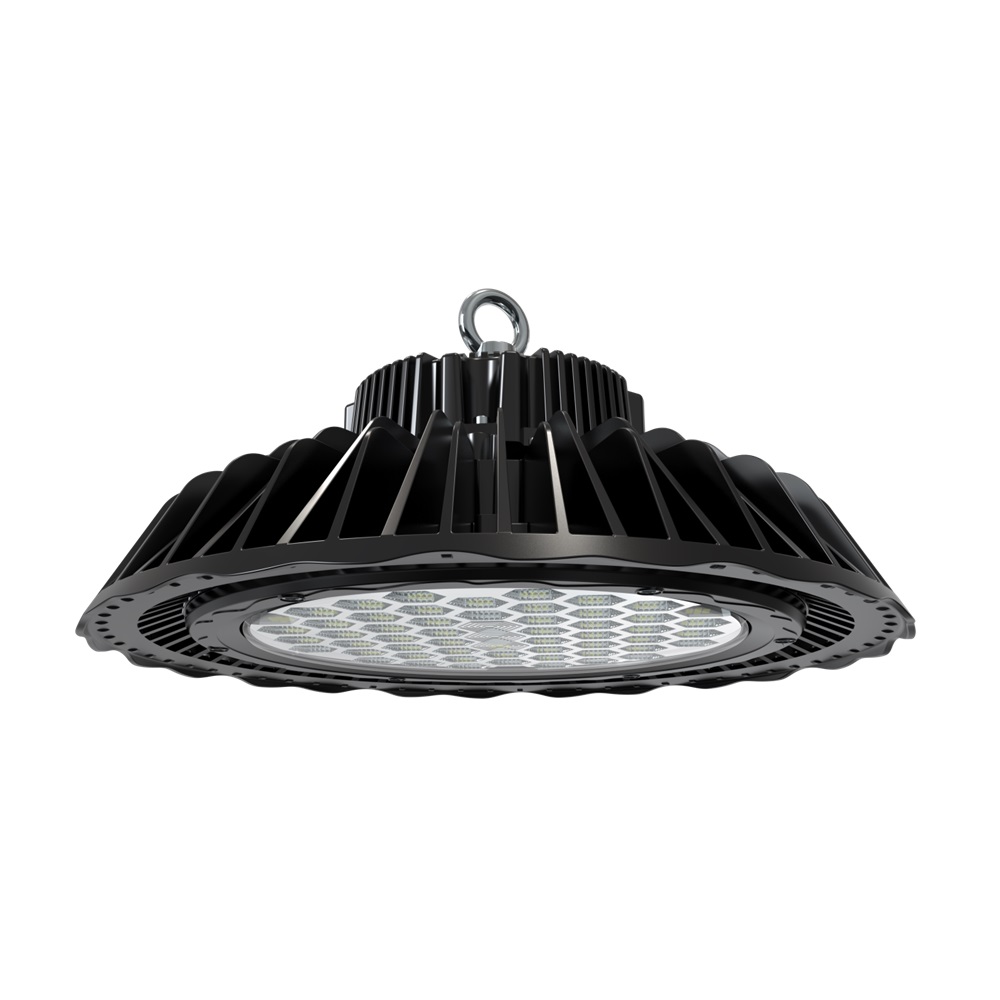

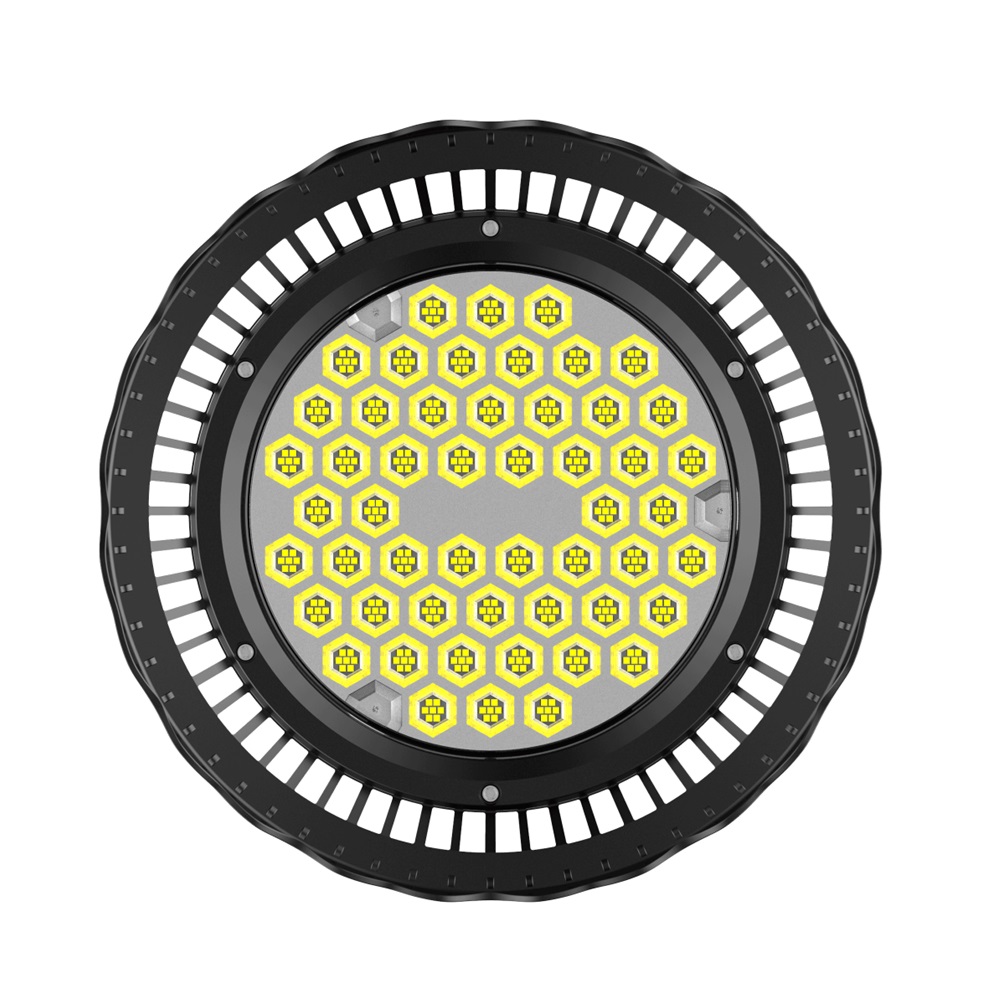

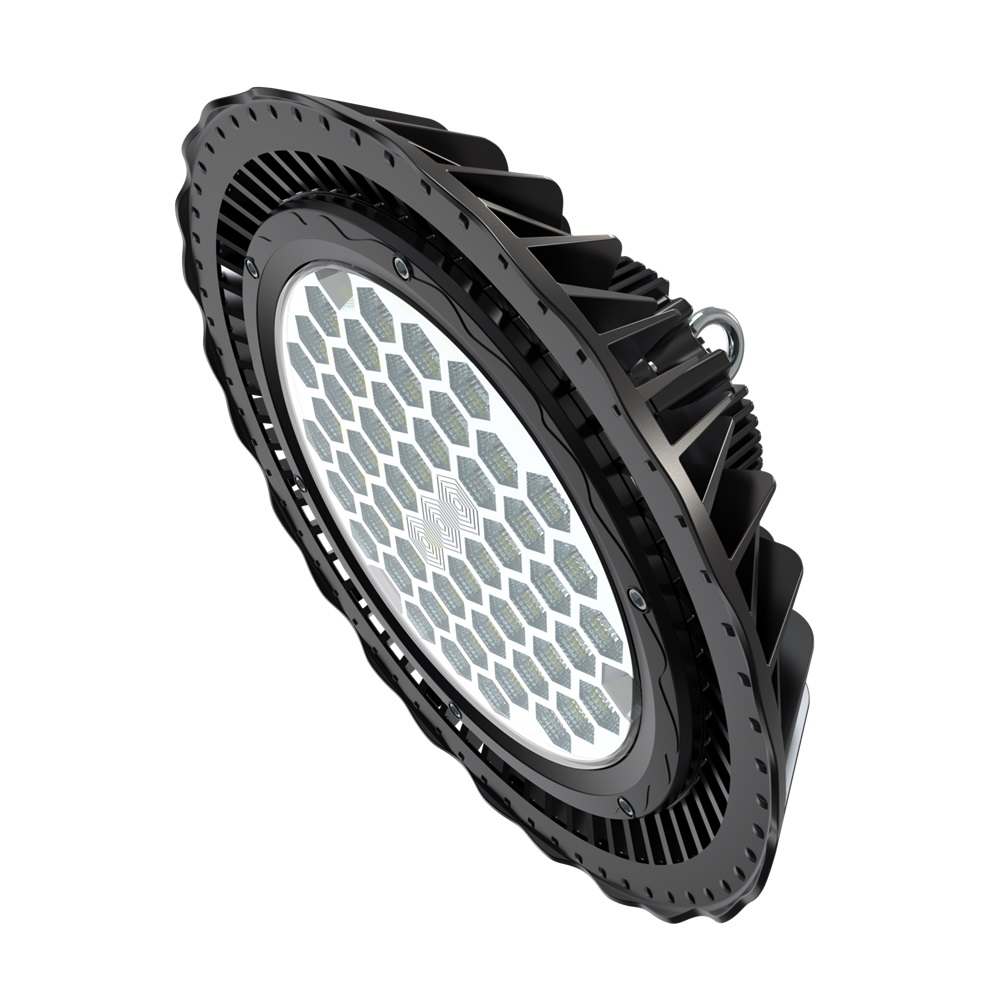

The Dufour UGR is a round LED high-bay luminaire made of die-cast aluminium for low-glare illumination of halls and industrial areas. The family comprises three power levels from 100 to 200 W with a luminous flux of 14'000 to 28'000 lm at an efficacy of up to 140 lm/W. The integrated optic achieves a glare rating of UGR < 19, making it suitable for workplaces with high visual demands. Thanks to its powder-coated housing and an operating temperature range of up to 50 °C, the Dufour UGR is also suitable for warm hall environments.

Key facts:

• Integrated optic for a low glare rating of UGR < 19
• Suitable for use at high temperatures up to 50 °C
• Light and easy to mount
• Flexible mounting: suspended, wall or ceiling fixing
• Elegant design, high build quality
• Resistant, powder-coated surface
• Programmable power levels, dimmable via DALI
• Emergency lighting variant and motion sensor available
• Optionally available: reflectors (aluminium/PC, 90°), 45° mounting bracket and knotted chain for fixing

Scope of delivery:

• 1x Dufour high-bay luminaire (in the selected power level and light colour)
• 1x carabiner hook for suspension
• 1x connection cable 3x1.5 mm², 2 m (LNPE)
• 1x DALI connection cable 2x1.0 mm² with Y-piece

Note: Further versions available on request

ELECTRONICS

• Primary voltage: 220 - 240 V AC / 50-60 Hz
• Control gear: Meanwell HLG / Sosen
• Power: 100 / 150 / 200 W
• Maximum system power: 200 W
• Conductor cross-section: 3 x 1.5 mm2
• Energy efficiency class: D

LIGHTING TECHNOLOGY

• Luminaire type: High-bay luminaire
• Light colour: 4'000 / 5'000 K
• Light colour adjustable: No
• Colour rendering: Ra > 80
• Maximum colour deviation: < 5 SDCM
• LED type: SMD
• LED brand: Nichia
• Rated luminous flux: 14'000 / 21'000 / 28'000 lm
• Luminaire efficacy: up to 140 lm/W
• Light distribution: Symmetric
• Light emission: Direct
• Beam angle: 65° / 90°
• Cover: PC
• Glare rating: UGR < 19
• Lifetime: 50'000 h L70 B10

FUNCTIONALITY

• Dimmability: On/off, DALI
• Motion detector: Yes (optional)
• Presence detector: Yes (optional)
• Integrated emergency function: Yes (optional)
• Application area: Indoor

DIMENSIONS

• Diameter: 383 mm
• Head diameter: 152 mm
• Height: 211 mm
• Weight: 6'400 g

CONNECTION

• Cable length: 200 cm (standard; DALI cable with Y-piece)

MATERIAL

• Housing colour: Black
• Light emission: PC

FURTHER DATA

• Protection rating: IP65
• Protection class: I
• Impact resistance: IK08
• Operating temperature: -30 to +50 °C
• Limited surface temperature (D certification): Yes
• Warranty: 5 years
• Certificates: CE, RoHS, ENEC25
