Eiger

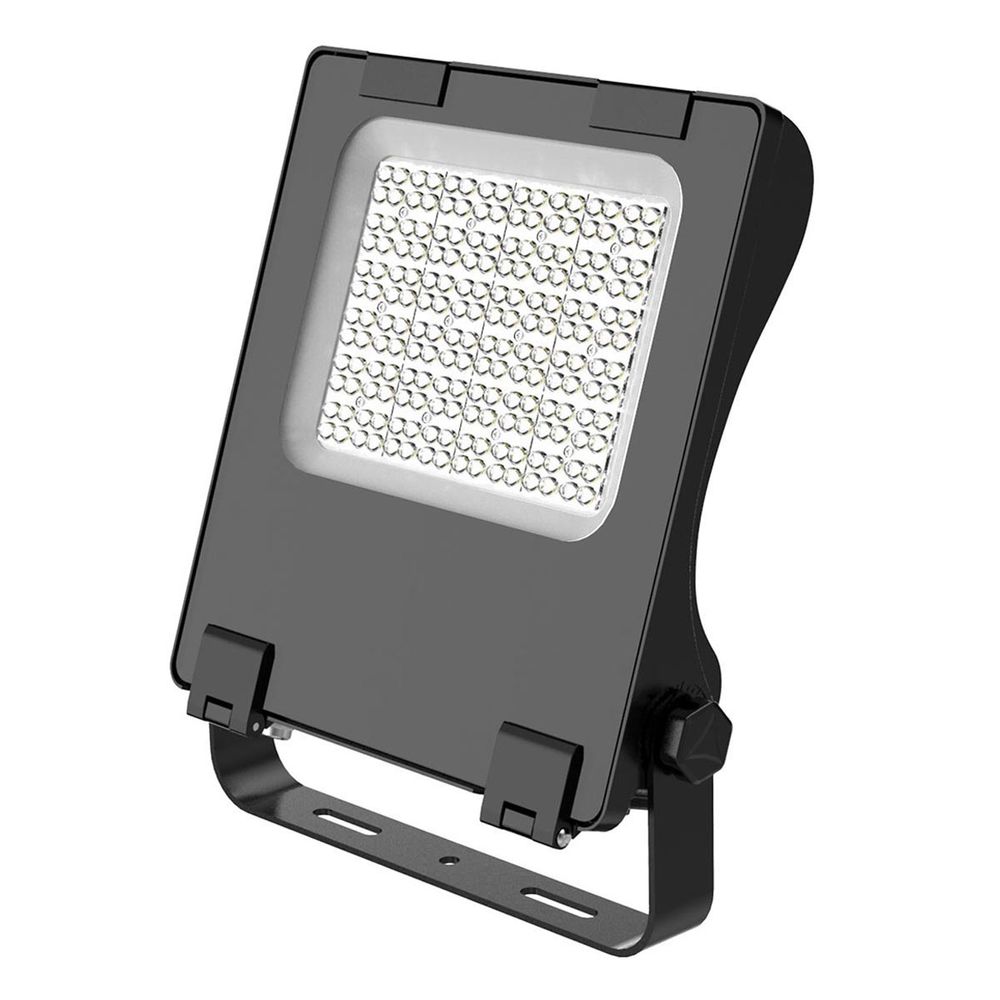

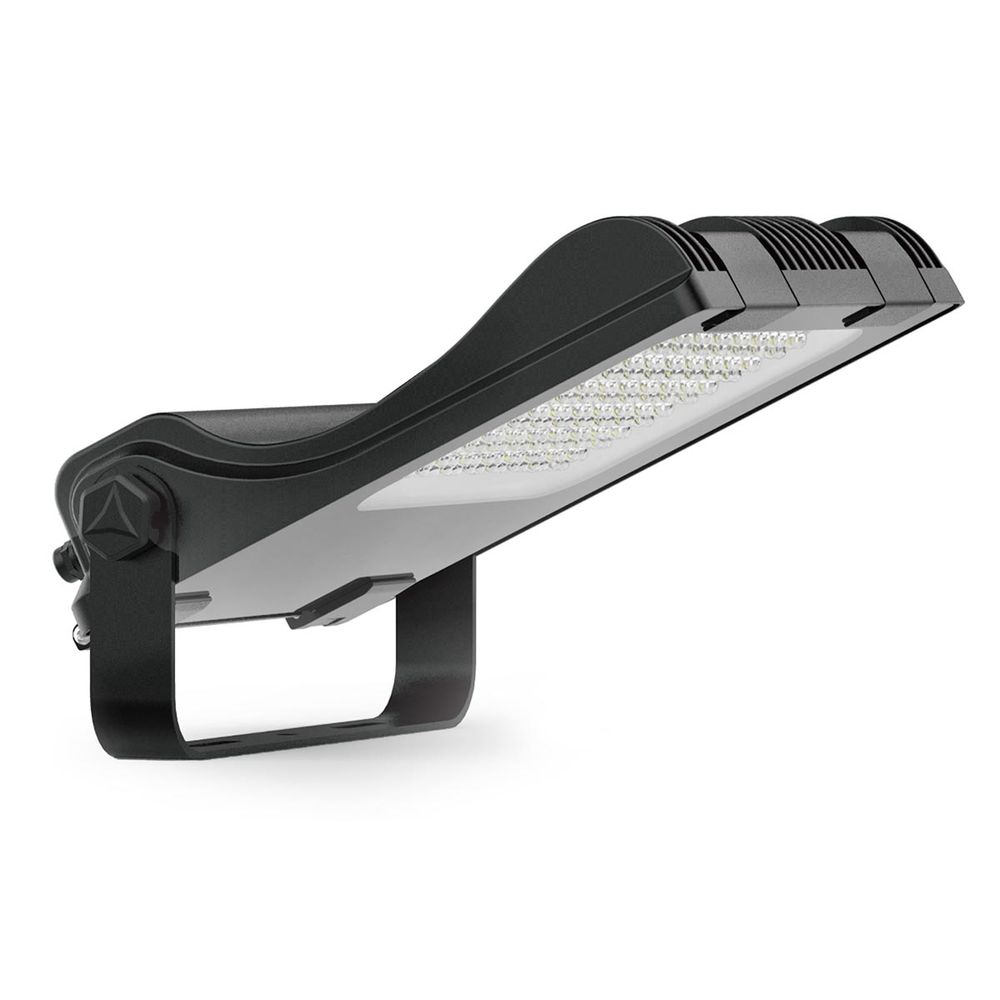

The Eiger is a modular LED floodlight made of powder-coated aluminium for illuminating large outdoor areas. The family comprises three sizes for the power range of 40 to 240 W with a luminaire efficacy of up to 155 lm/W. The tilt angle can be adjusted without tools in 5° steps, and the tempered glass cover protects the selectable optics. Thanks to its condensation valve and corrosion-resistant housing, the Eiger is suitable for permanent outdoor use.

Key facts:

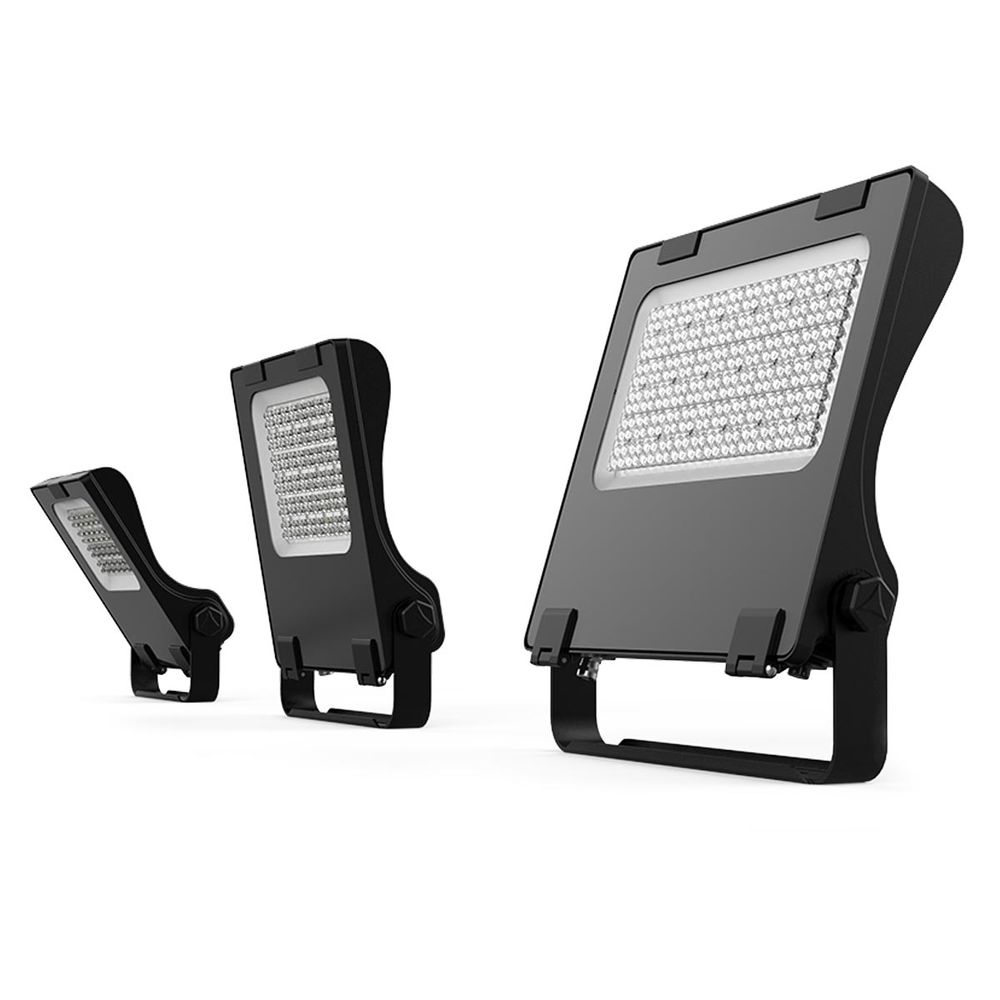

• 3 sizes for the power range 40 - 240 W
• Various optics for project-specific use
• High luminaire efficacy of up to 155 lm/W
• Easy maintenance thanks to tool-free opening
• Condensation valve for active moisture protection
• Tool-free adjustment of the tilt angle in 5° steps
• Corrosion-resistant, easy-to-clean housing
• Available with ZHAGA interface on request
• Surge protection up to 10 kV
• Optionally available: post-top flanges and pole clamps for post mounting

Scope of delivery:

• 1x Eiger floodlight (in the selected power level, light colour and optic)
• 1x connection cable H07RN-F, 1 m

Note: Further versions available on request

ELECTRONICS

• Primary voltage: 220 - 240 V AC / 50-60 Hz
• Control gear: Meanwell, replaceable
• Power: 40 / 100 / 150 / 200 / 240 W
• Maximum system power: 240 W
• Conductor cross-section: 3 x 1.5 mm2
• Energy efficiency class: D

LIGHTING TECHNOLOGY

• Luminaire type: Spotlight
• Light colour: 3'000 / 4'000 / 5'000 K
• Colour rendering: Ra > 80
• Maximum colour deviation: < 5 SDCM
• LED type: SMD 3030
• LED brand: Nichia
• LED efficacy: 165 lm/W
• Rated luminous flux: 6'160 / 15'400 / 23'100 / 30'800 / 36'960 lm
• Luminaire efficacy: up to 155 lm/W
• Beam angle: 15° / 60° x 30° / 60° x 40° / 120° x 65° / 140° x 90°, further optics on request
• Cover: Tempered glass
• Lifetime: 130'000 h L80 B10

FUNCTIONALITY

• Dimmability: On/off, DALI
• Motion detector: Yes (optional)
• Presence detector: Yes (optional)
• Application area: Outdoor

DIMENSIONS

• Width: 308 mm (40-80 W) / 366 mm (100-150 W) / 462 mm (200-240 W)
• Height: 359 mm (40-80 W) / 413 mm (100-150 W) / 452 mm (200-240 W)
• Depth: 82 mm (40-80 W) / 83 mm (100-150 W) / 87 mm (200-240 W)
• Weight: 4'300 g (40-80 W) / 6'900 g (100-150 W) / 8'400 g (200-240 W)

CONNECTION

• Cable type: H07RN-F
• Cable length: 100 cm (selectable)

MATERIAL

• Housing colour: Black RAL 9006
• Light emission: Tempered glass

FURTHER DATA

• Protection rating: IP66
• Protection class: I
• Impact resistance: IK08
• Operating temperature: -10 to +30 °C
• Warranty: 5 years
• Certificates: CE, RoHS
