Product family · In-house brand
Jura
Description

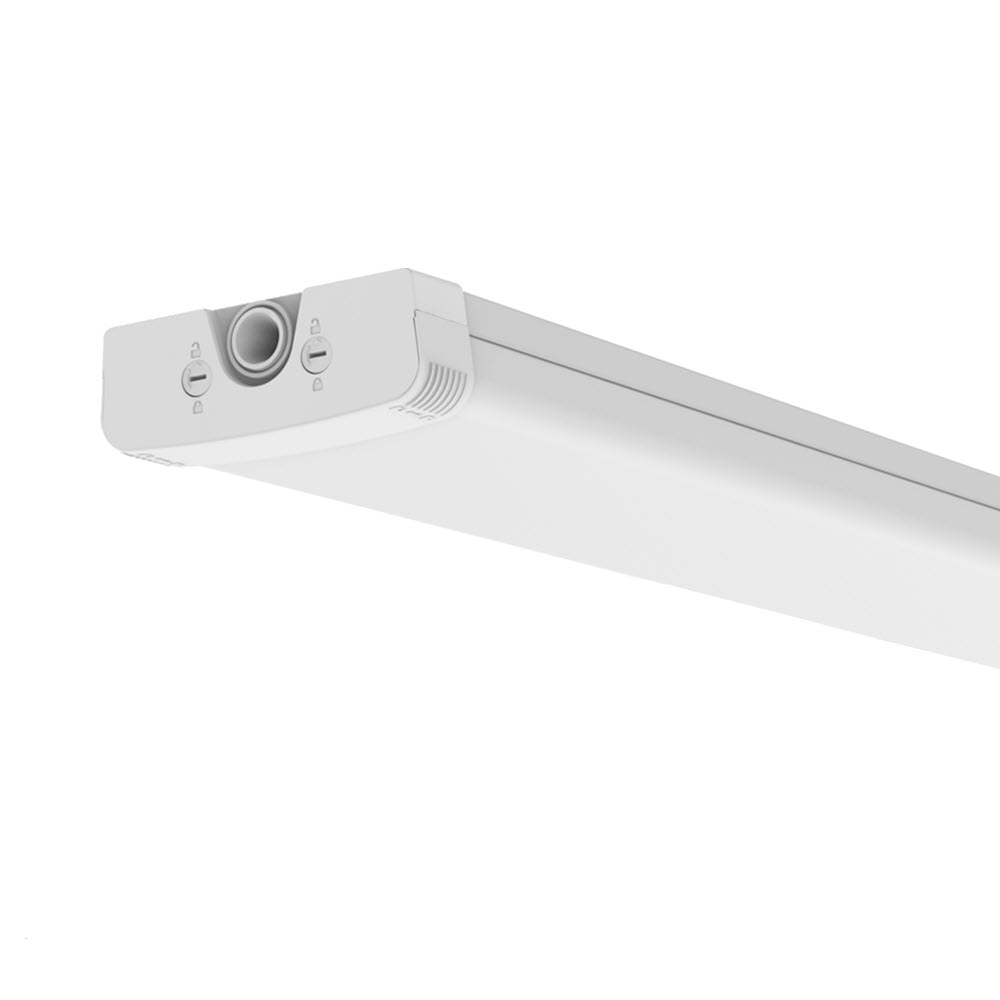

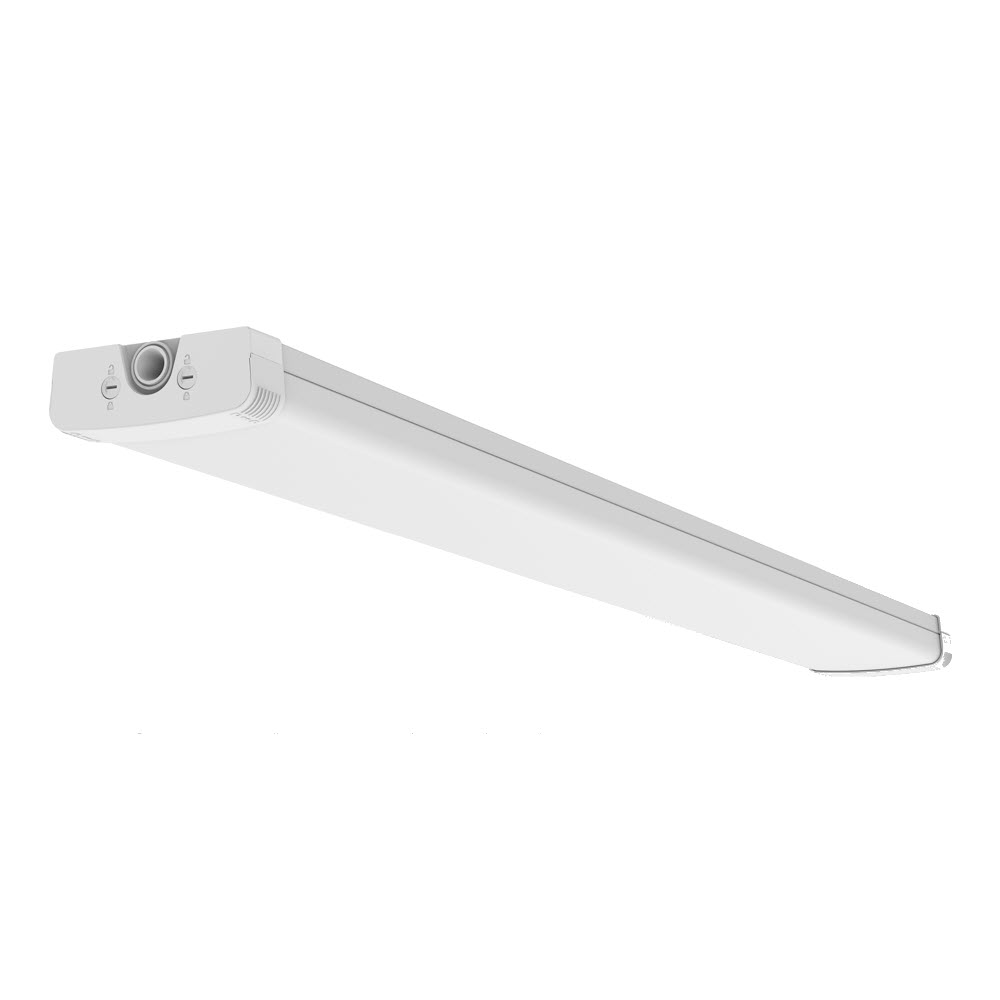

The Jura is a modular LED linear luminaire with lateral and direct light emission for comprehensive light distribution. It is available in lengths of 1'200 and 1'500 mm, covers a power range of 22 to 52 W and achieves a luminous flux of 2'860 to 6'760 lm at an efficacy of up to 130 lm/W. Control gear and LED board can be replaced individually, and the luminaire can be opened without tools and is easy to maintain. Thanks to its matt, diffuse surface and flexible mounting options, it is suitable for high-quality interior applications.
Key facts:
- Branded control gear from Tridonic
- Power adjustable via DIP switch
- Lateral light emission for comprehensive light distribution
- Control gear and LED board easy to replace
- Flexible mounting options, one connection per side

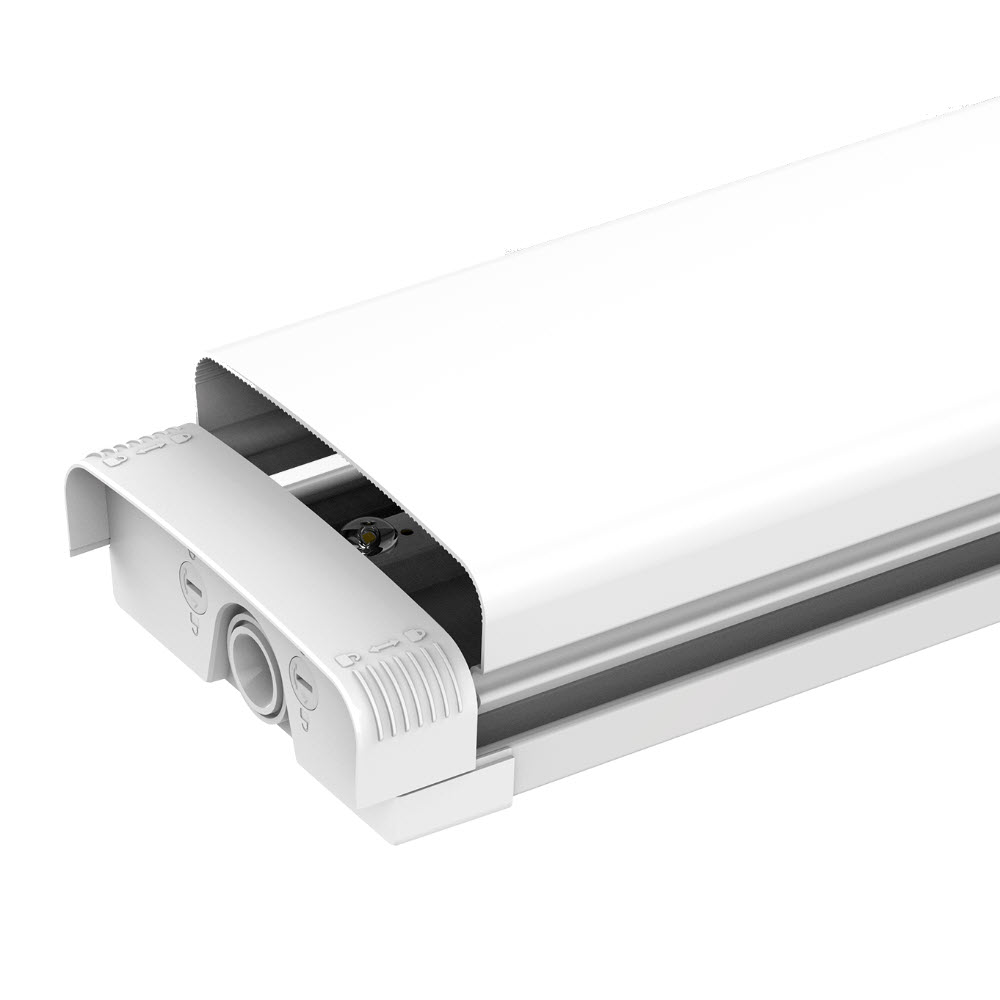

- Tool-free opening of the luminaire, easy maintenance
- Matt, diffuse luminaire surface for a high-quality impression
- Connection terminal on both sides for easy through-wiring
- Optionally available: cable pendant set, wall mounting set and emergency lighting set
Scope of delivery:
- 1x Jura linear luminaire (in the selected length, power level and control)
Note: Further versions available on request
Technical data
ELECTRONICS
- Primary voltage: 220 - 240 V AC / 50-60 Hz
- Control gear: Tridonic, replaceable
- Power: 22 / 28 / 34 / 39 W (1'200 mm) / 29 / 37 / 44 / 52 W (1'500 mm)
- Maximum system power: 52 W
- Maximum number of luminaires on B16: 27 (1'200 mm) / 19 (1'500 mm)
- Maximum number of luminaires on C16: 39 (1'200 mm) / 28 (1'500 mm)
- Conductor cross-section: 3 x 2.5 mm2 (on/off) / 5 x 2.5 mm2 (DALI)
- Energy efficiency class: C
LIGHTING TECHNOLOGY
- Luminaire type: Linear luminaire
- Light colour: 4'000 K
- Colour rendering: Ra > 80
- Maximum colour deviation: < 3 SDCM
- LED type: SMD 2835
- Rated luminous flux: 2'860 - 5'070 lm (1'200 mm) / 3'770 - 6'760 lm (1'500 mm)
- Luminaire efficacy: up to 130 lm/W
- Light distribution: Symmetric round
- Light emission: Direct & lateral
- Beam angle: 120°
- Cover: Opal matt
- Lifetime: 100'000 h L80 B10
FUNCTIONALITY
- Dimmability: On/off or DALI
- Motion detector: Yes (optional, on request)
- Presence detector: Yes (optional, on request)
- Integrated emergency function: Yes (optional)
- Application area: Indoor
DIMENSIONS
- Length: 1'200 mm / 1'500 mm
- Width: 135 mm
- Height: 50 mm
- Weight: 1'200 g (1'200 mm) / 2'400 g (1'500 mm)
MATERIAL
- Housing colour: White RAL 9010
- Light emission: PC
FURTHER DATA
- Protection rating: IP44
- Protection class: I
- Impact resistance: IK07
- Operating temperature: -20 to +40 °C
- Limited surface temperature (D certification): Yes
- Warranty: 5 years
- Certificates: CE, RoHS
