Product family · In-house brand
Montalin
Description

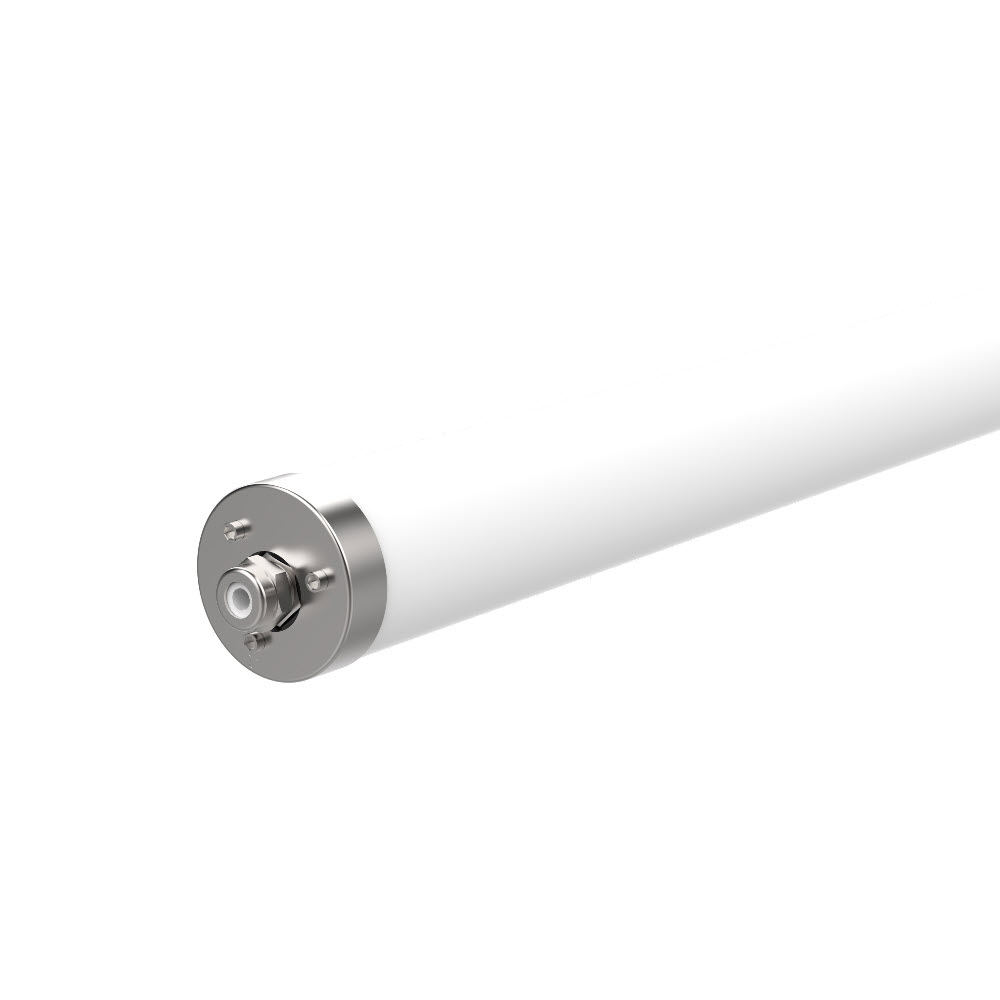

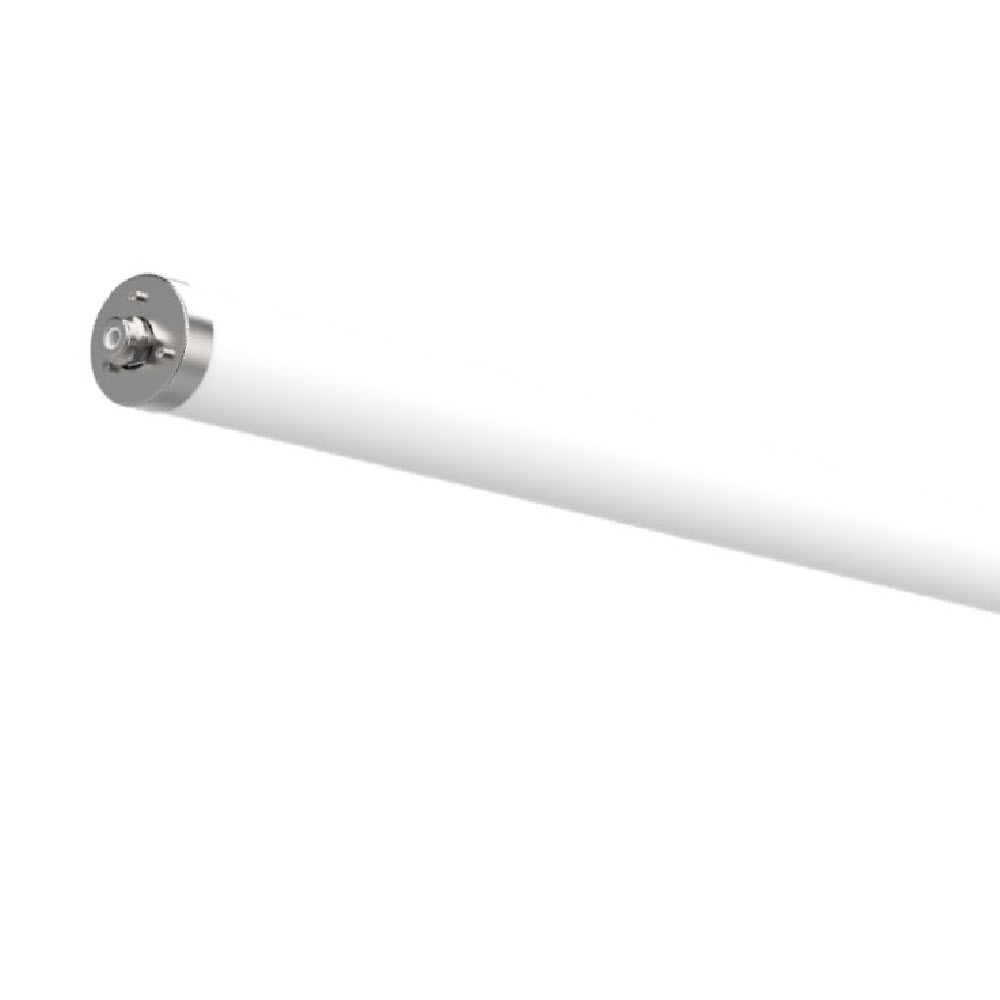

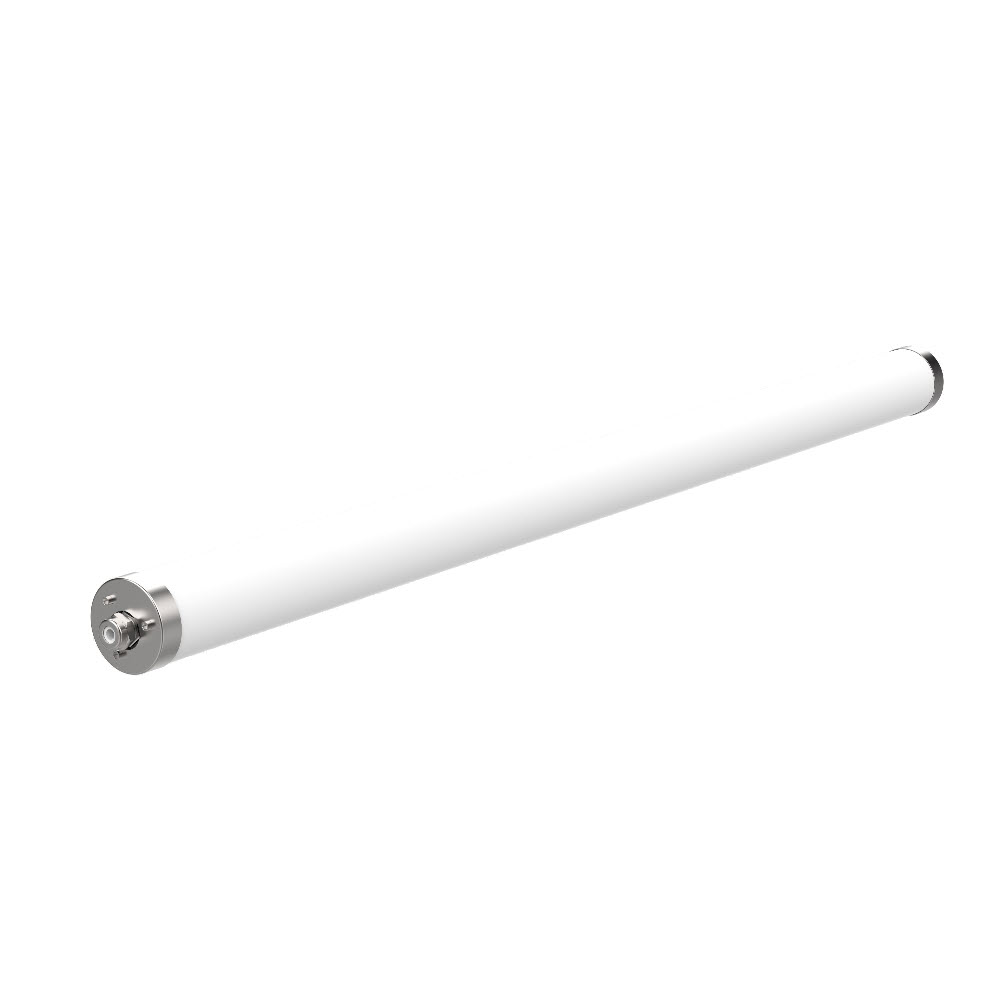

The Montalin is a robust LED protective tube luminaire with protection rating IP69K for use in demanding environments, available in lengths of 1'200 and 1'500 mm. It covers a power range of 36 to 48 W and achieves a luminous flux of 4'860 to 6'480 lm at an efficacy of up to 135 lm/W. Thanks to its UV-resistant PE surface and stainless steel end caps, it is suitable for both indoor and outdoor use. It can be connected on one side or with through-wiring and can be mounted as a surface-mounted or cable-suspended luminaire.
Key facts:
- Branded Tridonic control gear
- High degree of protection, UV-resistant
- Available with through-wiring
- Robust PE surface

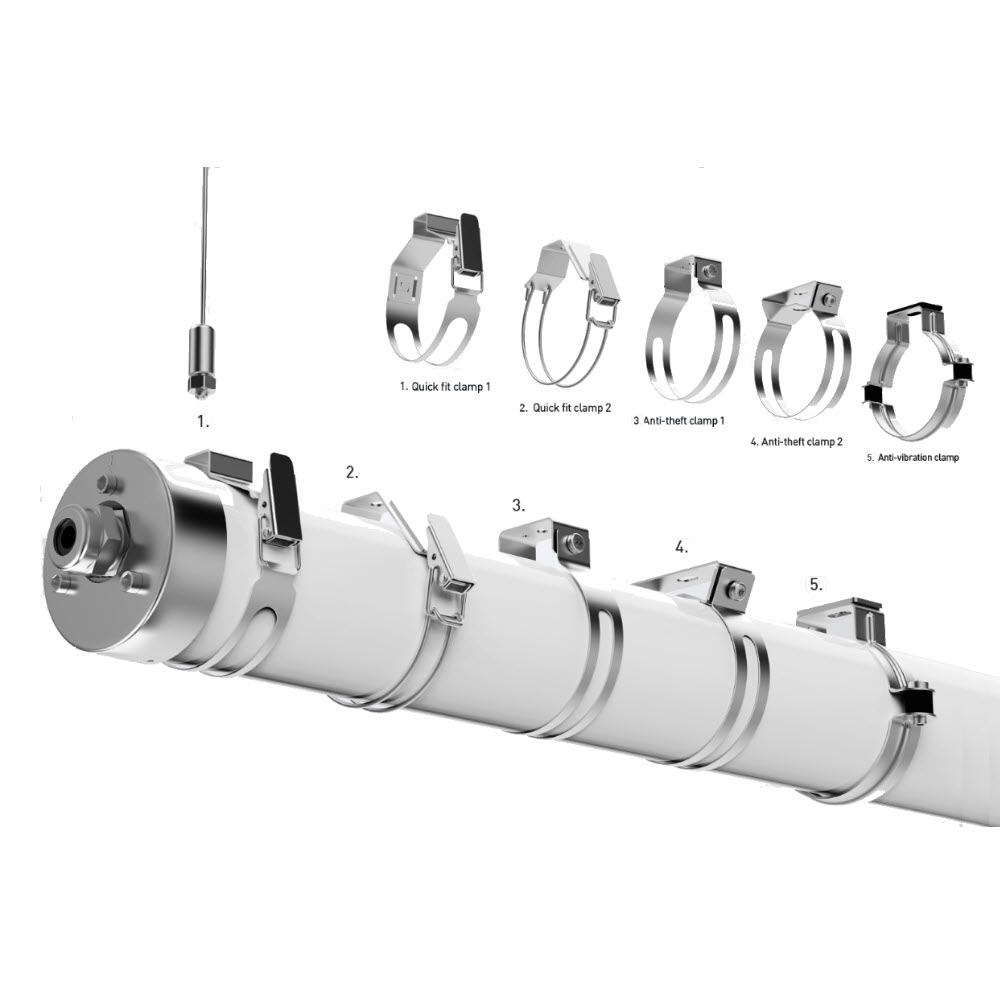

- Can be mounted as a surface-mounted or cable-suspended luminaire
- PG cable gland and end caps made of stainless steel
- Replaceable, separate elements, repairable luminaire
- Terminal block with strain relief
Scope of delivery:
- 1x Montalin protective tube luminaire (in the selected length and wiring)
Note: Further versions available on request
Technical data
ELECTRONICS
- Primary voltage: 220 - 240 V AC / 50-60 Hz
- Control gear: Tridonic, integrated, replaceable
- Power: 36 W (1'200 mm) / 48 W (1'500 mm)
- Maximum system power: 48 W
- Energy efficiency class: D
LIGHTING TECHNOLOGY
- Luminaire type: Protective tube luminaire
- Light colour: 4'000 K (others on request)
- Light colour adjustable: No
- Colour rendering: Ra > 80
- Maximum colour deviation: < 3 SDCM
- Rated luminous flux: 4'860 lm (1'200 mm) / 6'480 lm (1'500 mm)
- Luminaire efficacy: up to 135 lm/W
- Light distribution: Omnidirectional
- Light emission: Direct/indirect
- Beam angle: 120°
- Cover: Opal
- Lifetime: 104'000 h L80 B10
FUNCTIONALITY
- Dimmability: On/off
- Motion detector: Yes (optional, on request)
- Presence detector: Yes (optional, on request)
- Integrated emergency function: Yes (optional, on request)
- Application area: Indoor & outdoor
DIMENSIONS
- Length: 1'200 mm / 1'500 mm
- Diameter: 70 mm
- Weight: 1'620 g (1'200 mm) / 1'880 g (1'500 mm)
MATERIAL
- Light emission: PMMA
FURTHER DATA
- Protection rating: IP69K
- Protection class: I
- Impact resistance: IK10
- Operating temperature: -20 to +50 °C
- Limited surface temperature (D certification): Yes
- Warranty: 5 years
- Certificates: CE, RoHS
