Product family · In-house brand
Selun
Description

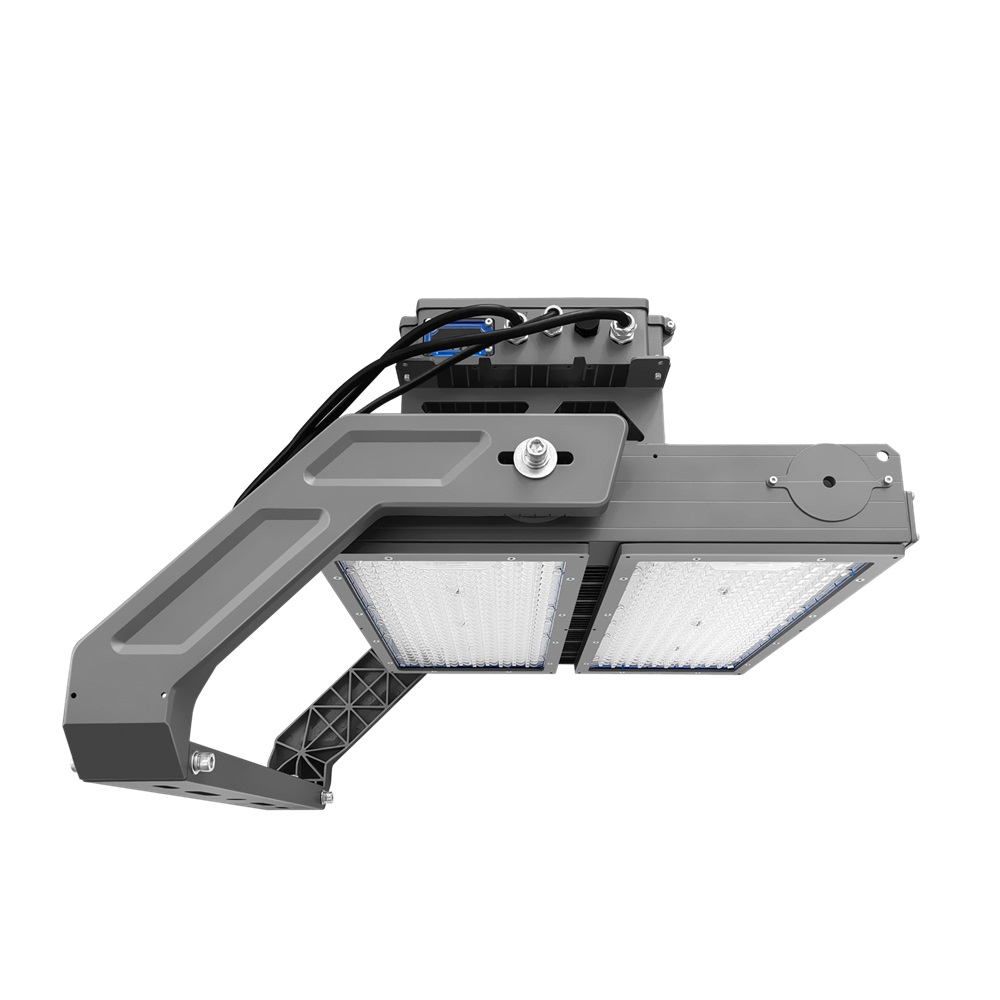

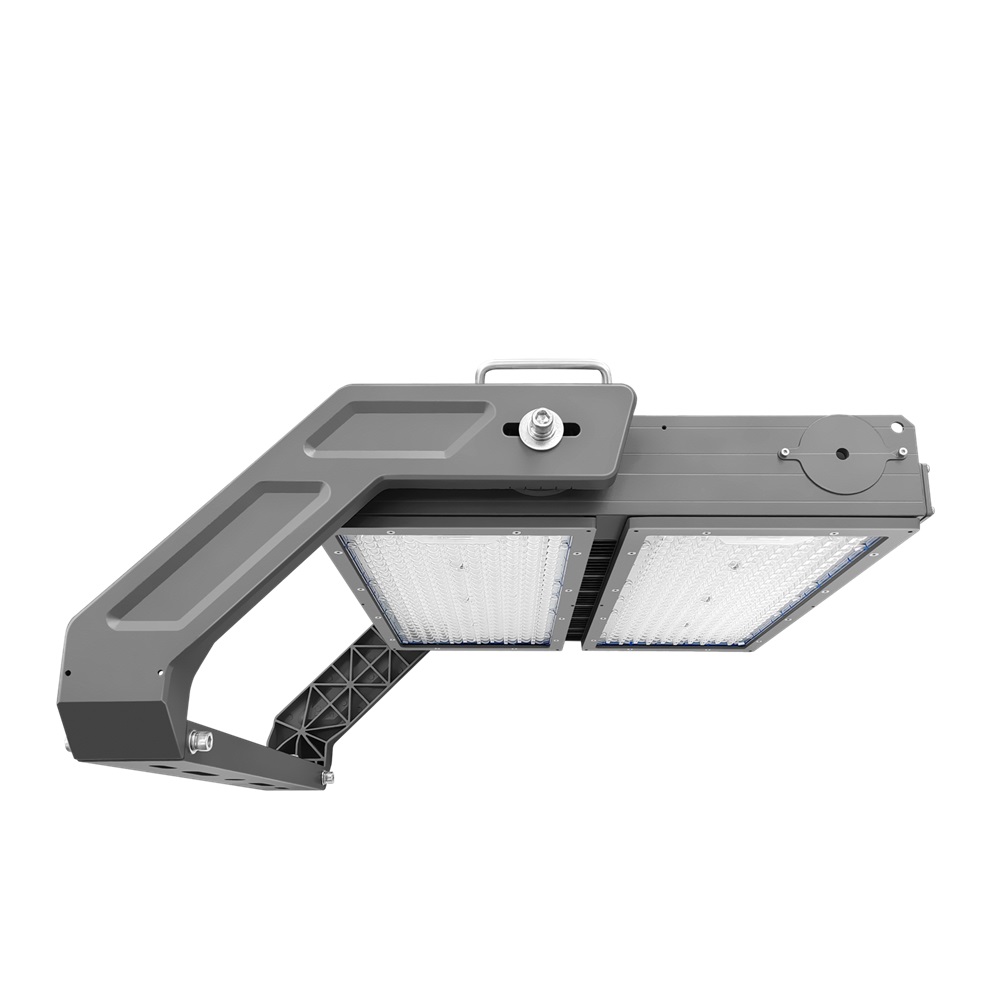

The Selun is a modular LED sports floodlight made of powder-coated aluminium for the professional illumination of large sports and outdoor areas. The family comprises two power levels from 600 to 1'250 W with a luminous flux of 86'000 to 172'000 lm at an efficacy of up to 140 lm/W. The ceramic LED board, the optic and the driver can be replaced individually, and a thermal control unit and intelligent driver control protect against total failure. The tilt angle can be fine-tuned with an accuracy of 0.5°, and eight different asymmetric optics are available.
Key facts:
- Strong structure thanks to the aluminium profile housing
- Corrosion-resistant thanks to powder coating
- Ceramic LED for high reliability and long lifetime
- Thermal control unit and intelligent driver control protect against total failure
- Sustainable life-cycle costs thanks to replaceable components (LED board, optic, driver)
- 20 kV surge protection
- Fine angle adjustment with an accuracy of 0.5°
- 8 different optics available

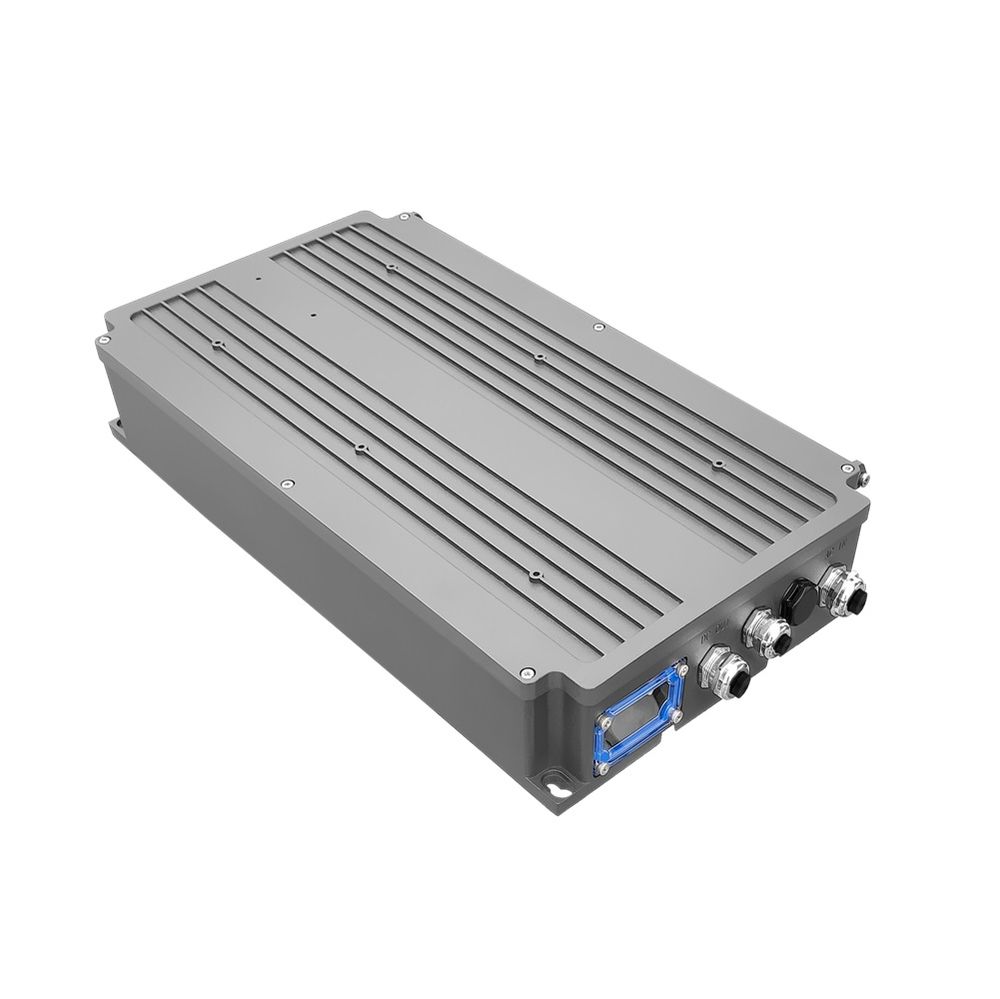

- Control gear can also be installed separately if required
- Optionally available: shield sets as well as DALI and power cables in various lengths
Scope of delivery:
- 1x Selun floodlight (in the selected power level, light colour and optic)
- 1x connection cable H07RN-F, 1 m
- 1x DALI connection cable H05RN-F, 1 m
- 1x connector set
Note: Further versions available on request
Technical data
ELECTRONICS
- Primary voltage: 110 - 240 V AC / 50-60 Hz
- Control gear: Meanwell / Inventronics
- Power: 600 / 1'250 W
- Maximum system power: 1'250 W
- Conductor cross-section: 3 x 1.5 mm2
- Energy efficiency class: D
LIGHTING TECHNOLOGY
- Luminaire type: Floodlight
- Light colour: 3'000 / 4'000 / 5'700 K
- Light colour adjustable: No
- Colour rendering: Ra > 80
- Maximum colour deviation: < 3 SDCM
- LED type: SMD 3535 Ceramic
- LED brand: Seoul / Lumileds
- Rated luminous flux: 86'000 / 172'000 lm
- Luminaire efficacy: up to 140 lm/W
- Light distribution: Asymmetric
- Beam angle: 40° x 15° / 60° x 15° / 100° x 17° / 100° x 60° / 130° x 25° (asymmetric), further optics on request
- Light emission: Direct
- Lifetime: 190'000 h L80 B10
FUNCTIONALITY
- Dimmability: DALI
- Application area: Outdoor
DIMENSIONS
- Length: 524 mm (600 W) / 724 mm (1'250 W)
- Height: 460 mm (600 W) / 455 mm (1'250 W)
- Width: 628 mm
CONNECTION
- Cable type: H07RN-F (power) / H05RN-F (DALI)
- Cable length: 100 cm
MATERIAL
- Housing colour: Grey RAL7037
- Light emission: PMMA
FURTHER DATA
- Protection rating: IP66
- Protection class: I
- Impact resistance: IK10
- Operating temperature: -20 to +50 °C
- Warranty: 5 years
- Certificates: CE, RoHS, D
