Product family · In-house brand
Simplon
Description

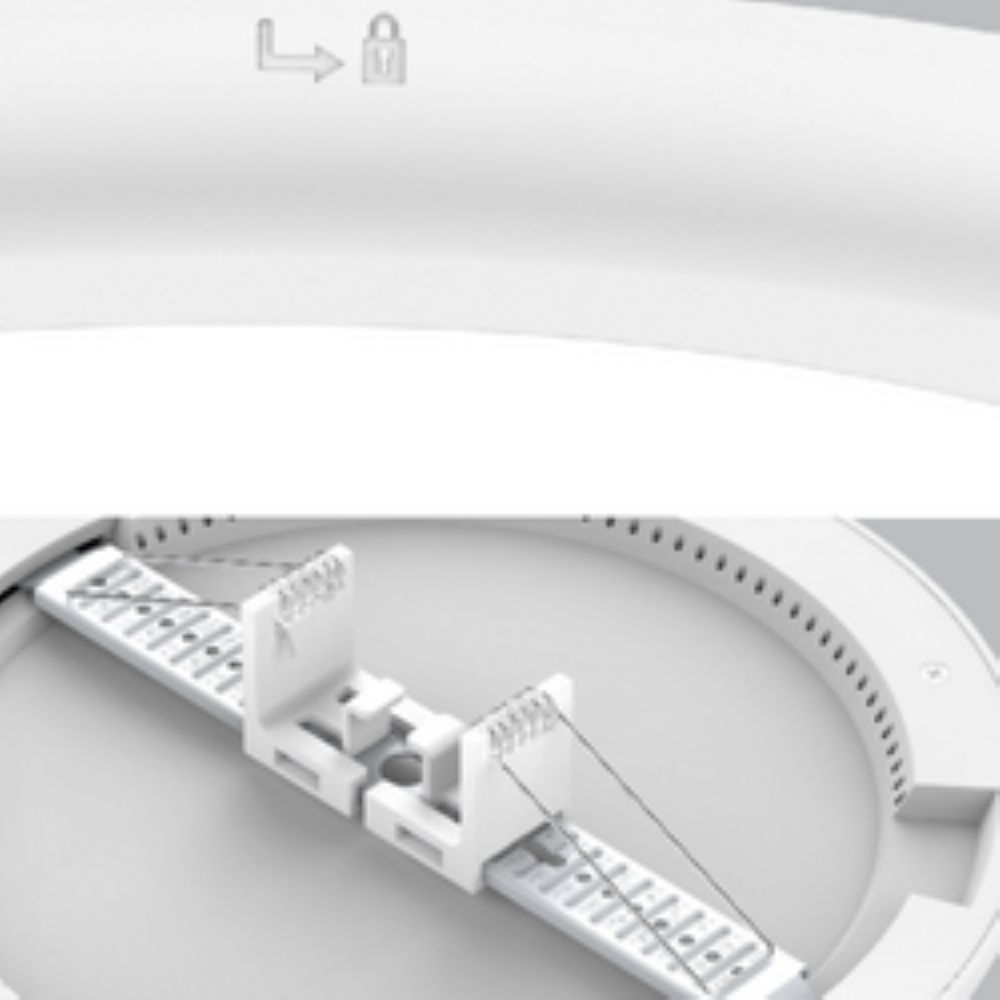

The Simplon is a flat LED surface-mounted and recessed panel with an integrated driver for ceiling cut-outs of 65 to 205 mm. It covers a power range of 10 to 16 W and achieves a luminous flux of 980 to 1'600 lm at a light colour of 3'000 to 5'700 K. Power and light colour can be set via DIP switch directly on the luminaire, and the aluminium and plastic housing ensures a permanently white colour. Thanks to its flexible installation, it is suitable for both surface and recessed mounting.
Key facts:
- Flexible installation, suitable for surface and recessed mounting
- Flat with integrated driver
- Light colour and light output adjustable via DIP switch
- Polyamide/aluminium housing for a permanently white colour
- Suitable for ceiling cut-outs from 65 to 205 mm
Scope of delivery:
- 1x Simplon surface/recessed panel (in the selected light colour and power level)
Note: Further versions available on request
Technical data
ELECTRONICS
- Primary voltage: 220 - 240 V AC / 50-60 Hz
- Control gear: Integrated
- Power factor: ≥ 0.9
- Power: 10 / 13 / 16 W
- Maximum system power: 16 W
LIGHTING TECHNOLOGY
- Light colour: 3'000 / 4'000 / 5'700 K
- Light colour adjustable: Yes (via DIP switch)
- Colour rendering: Ra > 80
- Maximum colour deviation: < 5 SDCM
- Rated luminous flux: 980 / 1'300 / 1'600 lm
- Beam angle: 120°
- Lifetime: > 50'000 h
FUNCTIONALITY
- Dimmability: On/off
- Application area: Indoor
DIMENSIONS
- Diameter: 235 mm
- Height: 16 mm
- Weight: 360 g
MATERIAL
- Housing colour: White RAL 9016
FURTHER DATA
- Protection rating: IP20
- Protection class: II
- Operating temperature: -20 to +45 °C
- Warranty: 5 years
