ANS 550 SL

Description

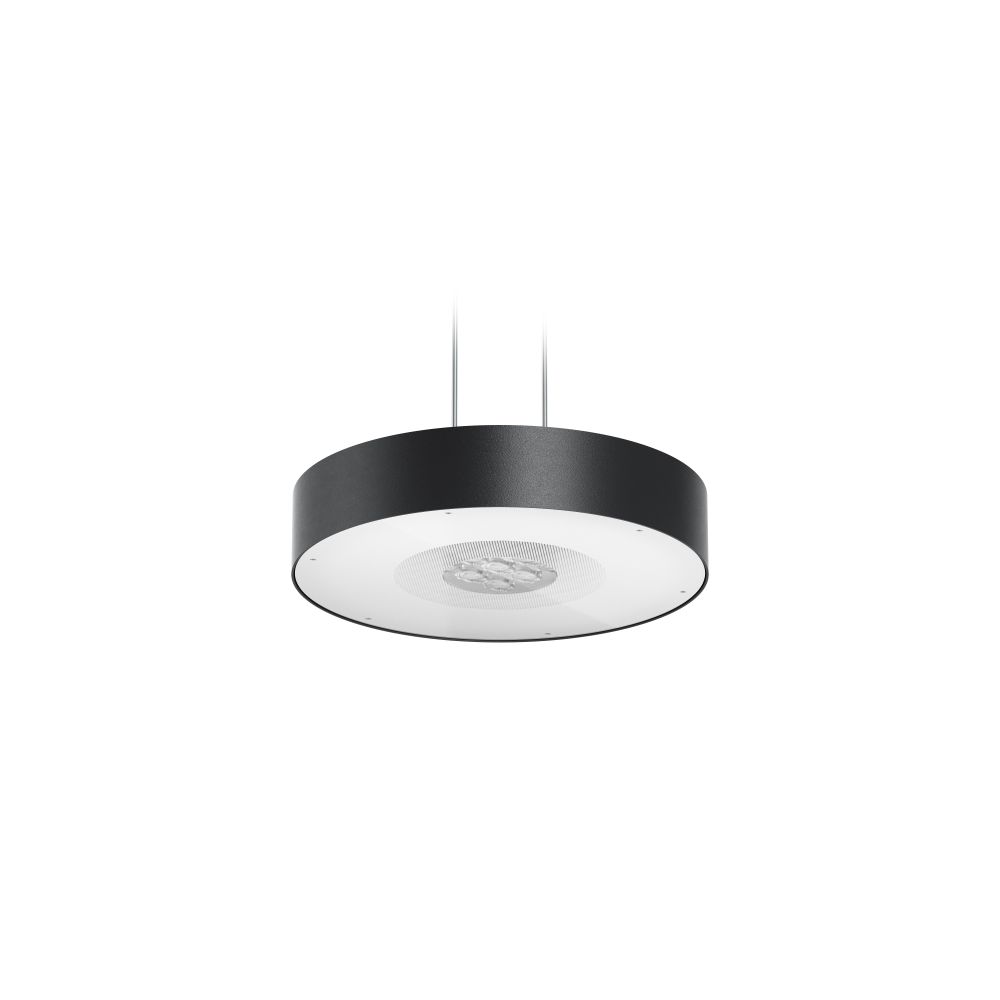

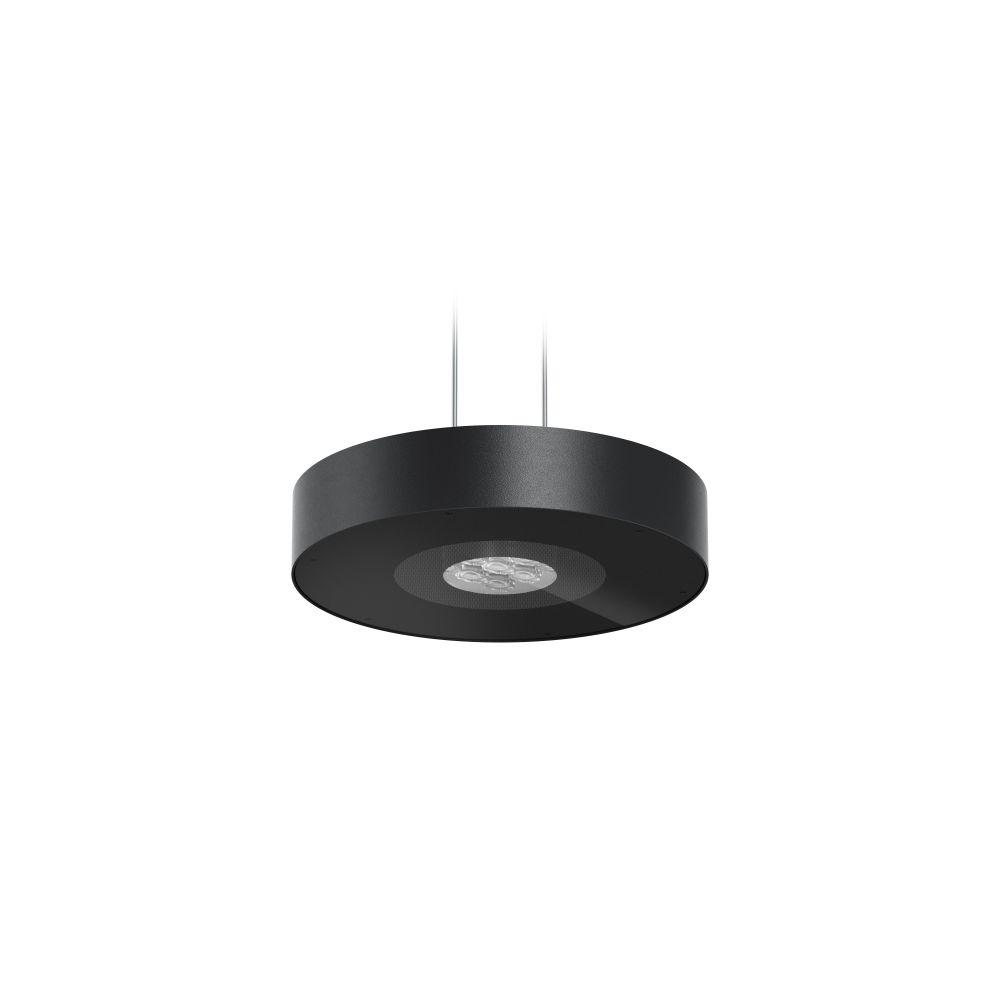

The ANS 550 SL is a round, disc-shaped catenary luminaire for outdoor lighting with a housing in coated aluminium (ø550 mm), mounted on a cable suspension in V2A stainless steel. The underside cover in clear PMMA is printed either white or black. It is equipped with an LED module of type BLK8-1/3/5/6/7/8 (C or S) and covers a power of 21.1-57.8 W and a luminous flux of 5'286-5'970 lm at 48.9 W (500 mA). The light colours 2'200/2'700/3'000 K (optionally 1'800/4'000 K) and the Zhaga sockets, PIR sensors or esave controllers that can optionally be integrated on the top side also make the largest ANS catenary luminaire attractive for smart-city applications.

Key facts:

Round, disc-shaped catenary luminaire in aluminium, ø550 mm
LED module type BLK8-1/3/5/6/7/8, selectable in C or S version
Underside PMMA cover, printed either white or black
Luminous flux 5'286 - 5'970 lm at 48.9 W (500 mA)
Light colour 2'200/2'700/3'000 K, optionally 1'800/4'000 K
Constant-current driver with DALI, power reduction circuit, AstroDim
Optional on the top side: Zhaga socket, PIR sensor, esave controller
Weight approx. 14 kg
Weather-resistant: housing IP54, LED module IP67
Available as an option: stray-light shields, Christmas socket, lighting control

Scope of delivery:

1x ANS 550 SL catenary luminaire
1x LED module with electronic driver, pre-assembled
Cable suspension in V2A available separately (not included in the standard delivery)

Note: Further versions available on request

Technical data

ELECTRONICS

Power: 21.1 - 57.8 W
Control gear: constant-current driver for LED modules (DALI, power reduction circuit, AstroDim)

LIGHTING TECHNOLOGY

Luminaire type: Catenary luminaire, round disc shape
Light source: 1x LED module type BLK8-1/3/5/6/7/8, C or S
Light distribution: sym. narrow-beam / linear wide-beam / asym. wide-beam / sym. wide-beam / asym. deep-beam
Light colour: 2'200 K / 2'700 K / 3'000 K, optionally 1'800 K / 4'000 K
Light colour adjustable: No
Power adjustable: Yes
Rated luminous flux: 5'286 - 5'970 lm (at 48.9 W / 500 mA, depending on module)
Cover: underside cover PMMA clear, printed white or black; PMMA lenses clear or satin-finished

FUNCTIONALITY

Dimmability: DALI, power reduction circuit, AstroDim
Interfaces: optional (on the top side) Zhaga socket, PIR sensor, esave controller
Application area: Outdoor, catenary mounting

DIMENSIONS

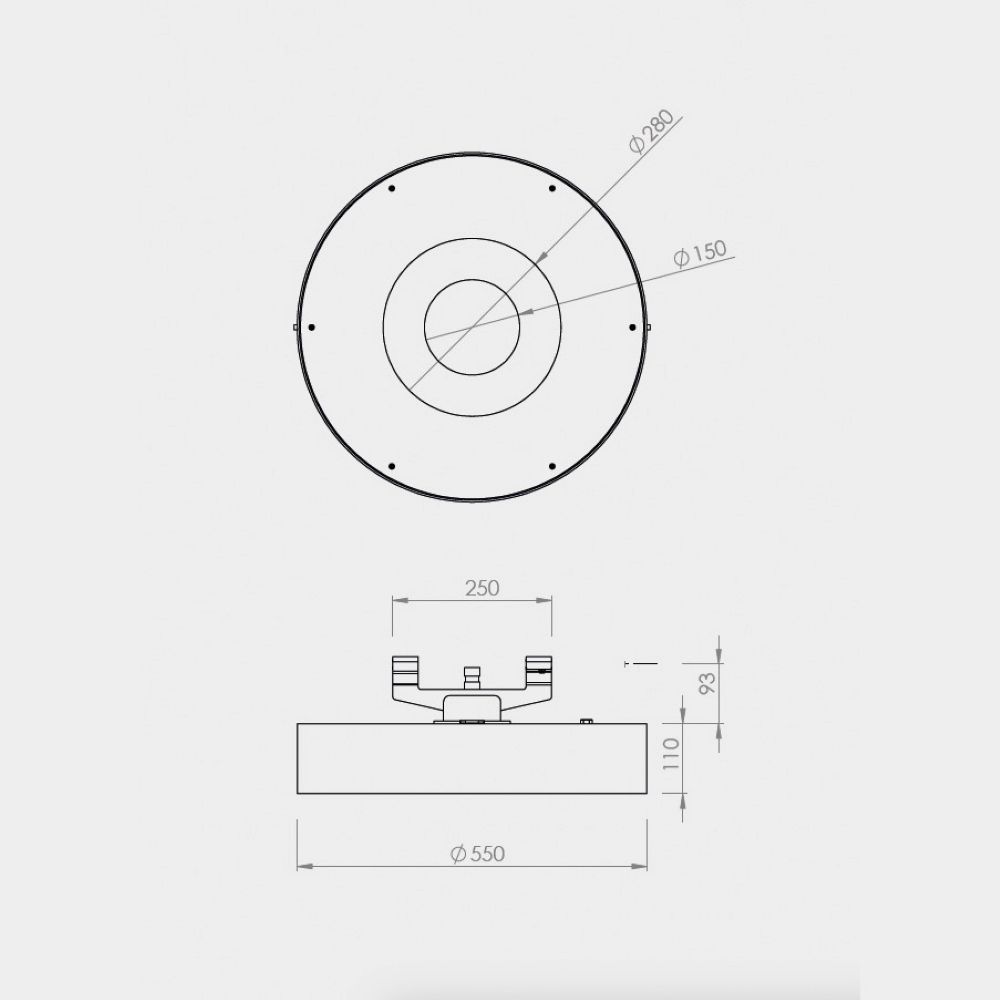

Diameter: ø550 mm
Housing height: 110 mm
Weight: approx. 14 kg

MATERIAL

Housing colour: DB703 (BL anthracite) / DB702 (BL grey) / DB701 (BL silver-grey), further colours on request
Housing material: aluminium, coated surfaces
Light emission material: underside cover PMMA clear (printed white or black), PMMA lenses clear or satin-finished
Luminaire body: aluminium

FURTHER DATA
