Rondo 200 SL

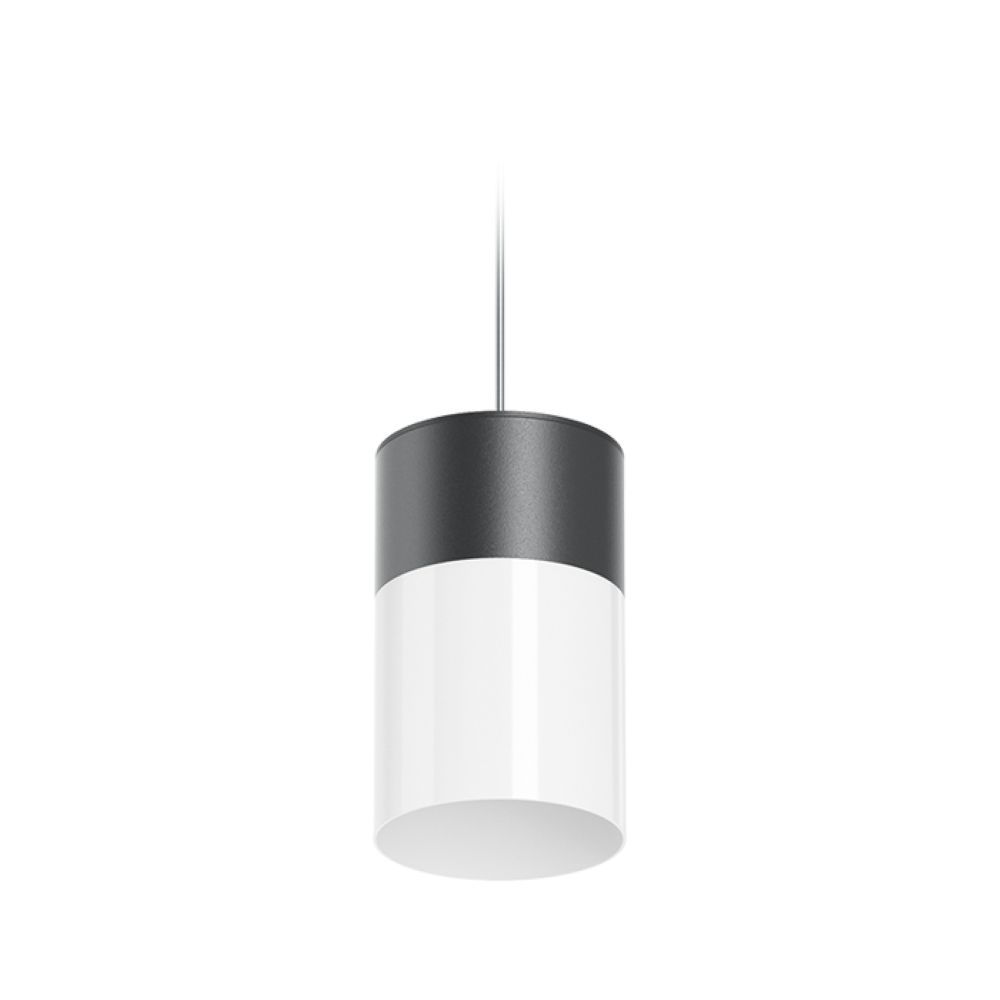

The Rondo 200 SL is a cylindrical catenary luminaire for outdoor lighting with a housing in coated aluminium (ø200 mm) and a decorative glare-control tube in satin-finished PMMA. It is equipped with an LED module of type BLK4-1S or BLK4-6S and covers a power of 21-39 W and a luminous flux of 2'111-3'981 lm. The light colour is fixed at 3'000 K warm white; 4'000 K neutral white is available as an option. The luminaire is mounted on a cable suspension (design variant D).

Key facts:

• Cylindrical catenary luminaire in aluminium, ø200 mm, with decorative PMMA glare-control tube
• LED module type BLK4-1S (medium-wide deep-beam) or BLK4-6S (sym. wide-beam)
• Luminous flux 2'111 - 3'981 lm
• Light colour 3'000 K, optionally 4'000 K
• Control gear OSRAM OT50 2DIM with AstroDim (1-10V)
• Optional: DALI, DC-compatible, power reduction circuit (StepDim)
• Height 300 mm
• Weather-resistant: housing IP54, LED module IP66
• Available as an option: Christmas socket, lighting control

Scope of delivery:

• 1x Rondo 200 SL catenary luminaire
• 1x LED module with electronic driver, pre-assembled

Note: Further versions available on request

ELECTRONICS

• Power: 21 - 39 W
• Control gear: OSRAM OT50 2DIM (AstroDim, 1-10V), optionally DALI + DC-compatible, power reduction circuit (StepDim)

LIGHTING TECHNOLOGY

• Luminaire type: Catenary luminaire, cylindrical design
• Light source: 1x LED module type BLK4-1S or BLK4-6S
• Light distribution: medium-wide deep-beam / sym. wide-beam
• Light colour: 3'000 K, optionally 4'000 K
• Light colour adjustable: No
• Power adjustable: Yes
• Rated luminous flux: 2'111 - 3'981 lm (depending on module)
• Cover: decorative glare-control tube in satin-finished PMMA, PMMA lenses satin-finished

FUNCTIONALITY

• Dimmability: AstroDim (1-10V), optionally DALI, power reduction circuit (StepDim)
• Application area: Outdoor, catenary mounting

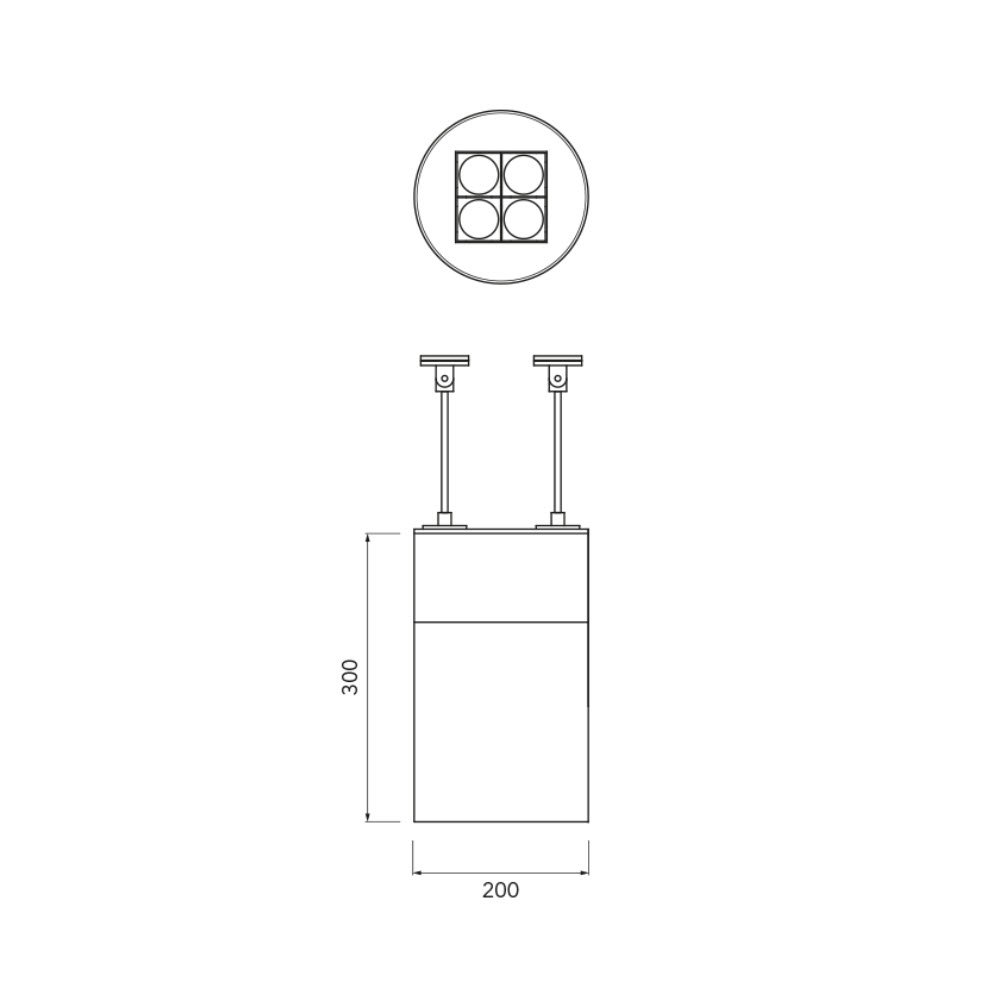

DIMENSIONS

• Diameter: ø200 mm
• Height: 300 mm

MATERIAL

• Housing colour: DB703 (BL anthracite) / DB702 (BL grey) / DB701 (BL silver-grey), further colours on request
• Housing material: aluminium, coated surfaces
• Light emission material: decorative glare-control tube in satin-finished PMMA, PMMA lenses satin-finished
• Luminaire body: aluminium

FURTHER DATA

• Protection rating: housing IP54, LED module IP66
• Protection class: I and II
• Warranty: 5 years
• Certificates: CE
• Mounting: catenary mounting (design variant D)
