Canna 250 SL

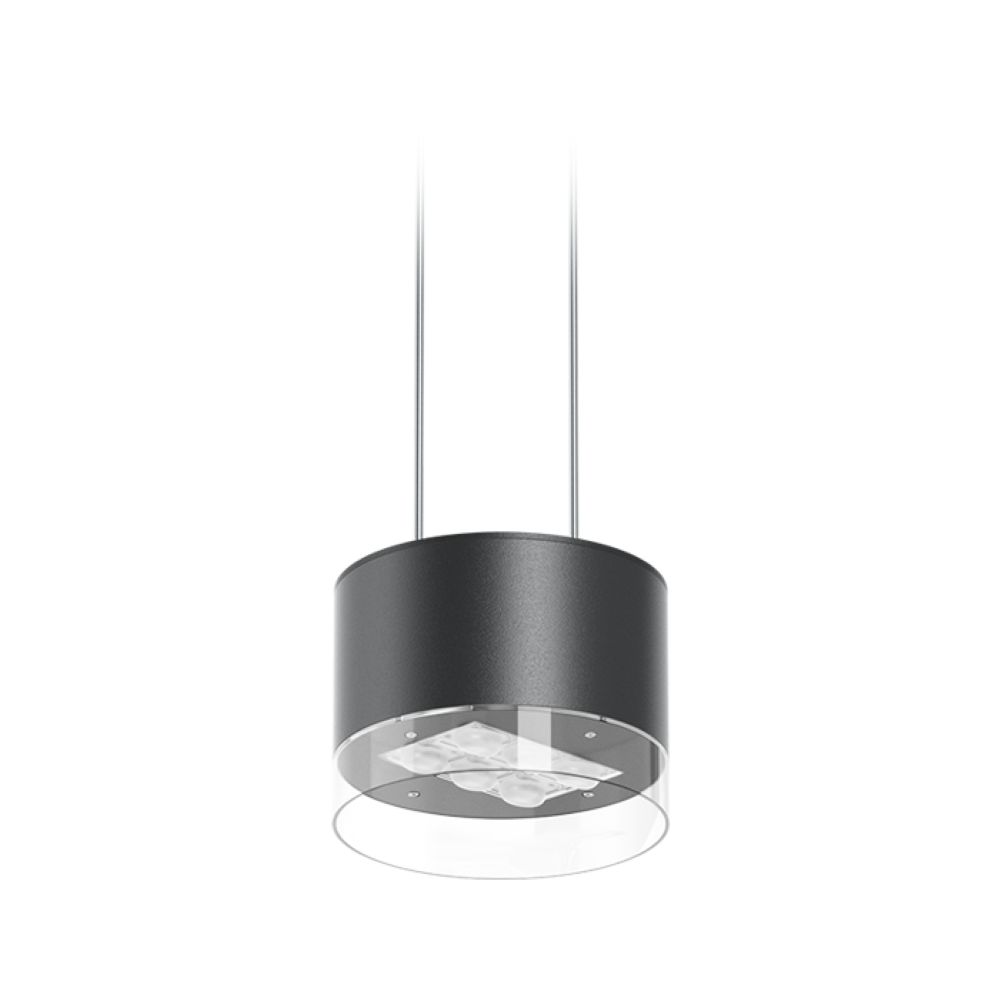

The Canna 250 SL is a catenary luminaire for outdoor lighting that is mounted either on a span wire or on a pendant rod in V2A stainless steel. The housing in coated aluminium (ø250 mm) accommodates an LED module of type BLK6-1/3/5/6/8 (C or S) and covers a power of 27-52 W and a luminous flux of 2'636-6'000 lm. Five selectable light distributions, from linear through symmetric and asymmetric to spot optics, make the luminaire versatile. The light colours 2'700/3'000 K (optionally 2'200/4'000 K) round off the range.

Key facts:

• Catenary luminaire in aluminium, ø250 mm, mountable on a span wire or pendant rod (V2A)
• LED module type BLK6-1/3/5/6/8, selectable in C or S version
• 5 light distributions: linear wide, asym. wide, sym. wide, asym. deep, plus spot
• Luminous flux 2'636 - 6'000 lm
• Light colour 2'700/3'000 K, optionally 2'200/4'000 K
• PMMA lenses, clear or satin-finished
• Control gear OSRAM OT100 2DIM with AstroDim (1-10V)
• Optional: DALI, DC-compatible, power reduction circuit (StepDim)
• Weather-resistant: housing IP54, LED module IP66
• Available as an option: Christmas socket, lighting control

Scope of delivery:

• 1x Canna 250 SL catenary luminaire
• 1x LED module with electronic driver, pre-assembled
• Cable pendant or pendant rod in V2A available separately (not included in the standard delivery)

Note: Further versions available on request

ELECTRONICS

• Power: 27 - 52 W
• Control gear: OSRAM OT100 2DIM (AstroDim, 1-10V), optionally DALI + DC-compatible, power reduction circuit (StepDim)

LIGHTING TECHNOLOGY

• Luminaire type: Catenary luminaire, available in 5 light distributions
• Light source: 1x LED module type BLK6-1/3/5/6/8, C or S
• Light distribution: linear wide-beam / asym. wide-beam / sym. wide-beam / asym. deep-beam / spot
• Light colour: 2'700 K / 3'000 K, optionally 2'200 K / 4'000 K
• Light colour adjustable: No
• Power adjustable: Yes
• Rated luminous flux: 2'636 - 6'000 lm (depending on module)
• Cover: PMMA lenses, clear or satin-finished

FUNCTIONALITY

• Dimmability: AstroDim (1-10V), optionally DALI, power reduction circuit (StepDim)
• Application area: Outdoor, catenary mounting (span wire) or pendant rod

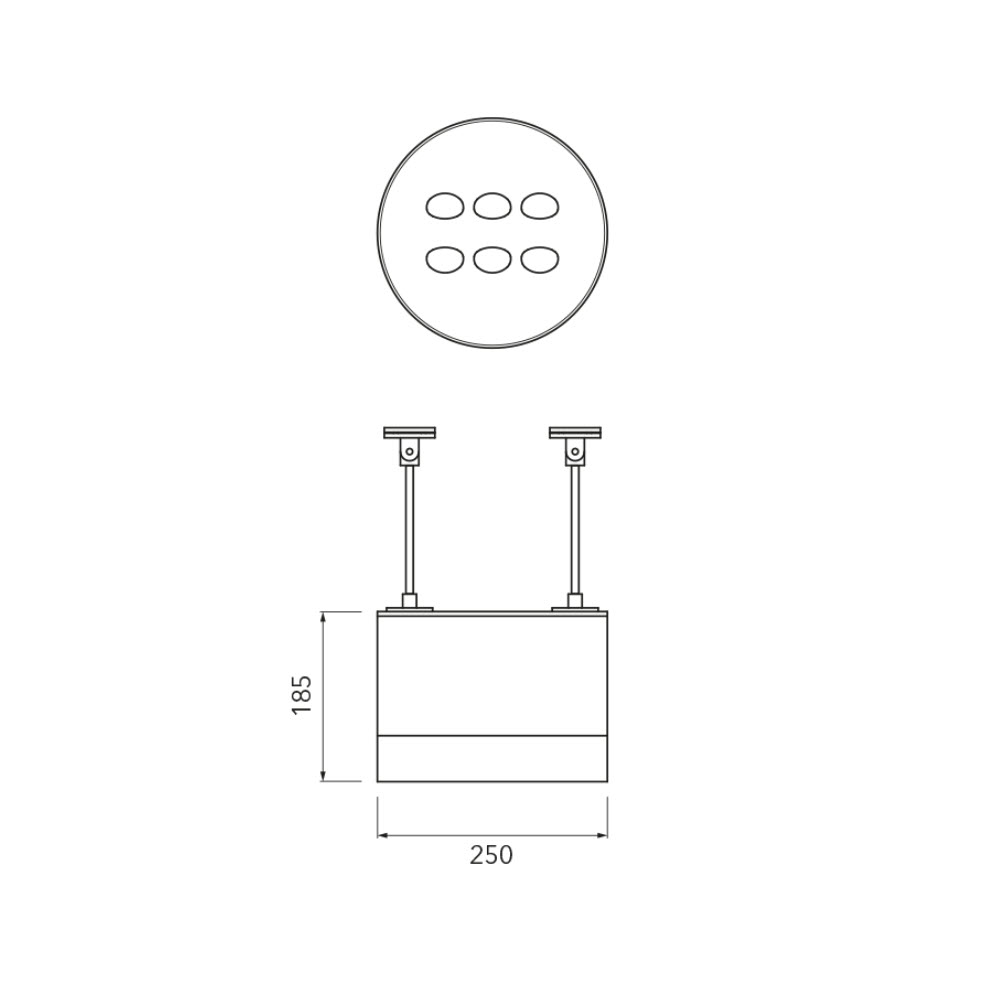

DIMENSIONS

• Diameter: ø250 mm
• Housing height: 185 mm

MATERIAL

• Housing colour: DB703 (BL anthracite) / DB702 (BL grey) / DB701 (BL silver-grey), further colours on request
• Housing material: aluminium, coated surfaces
• Light emission material: PMMA lenses clear or satin-finished
• Luminaire body: aluminium

FURTHER DATA

• Protection rating: housing IP54, LED module IP66
• Protection class: I and II
• Warranty: 5 years
• Certificates: CE
• Mounting: cable pendant or pendant rod in V2A (design variant D)
